- Comp: Tweeter
- Size: 26 mm (1″)
- Power Handling: Hi-pass filtered 3.5 kHz @ 12 dB Oct. 150 W Peak Power
- Impedance: 4 Ω
- Frequency Response: 2k ÷ 20k Hz
- Sensitivity: 93 dB/Spl
- Magnet: Neodymium
- Dome: Tetolon fibre
Audison AP 1

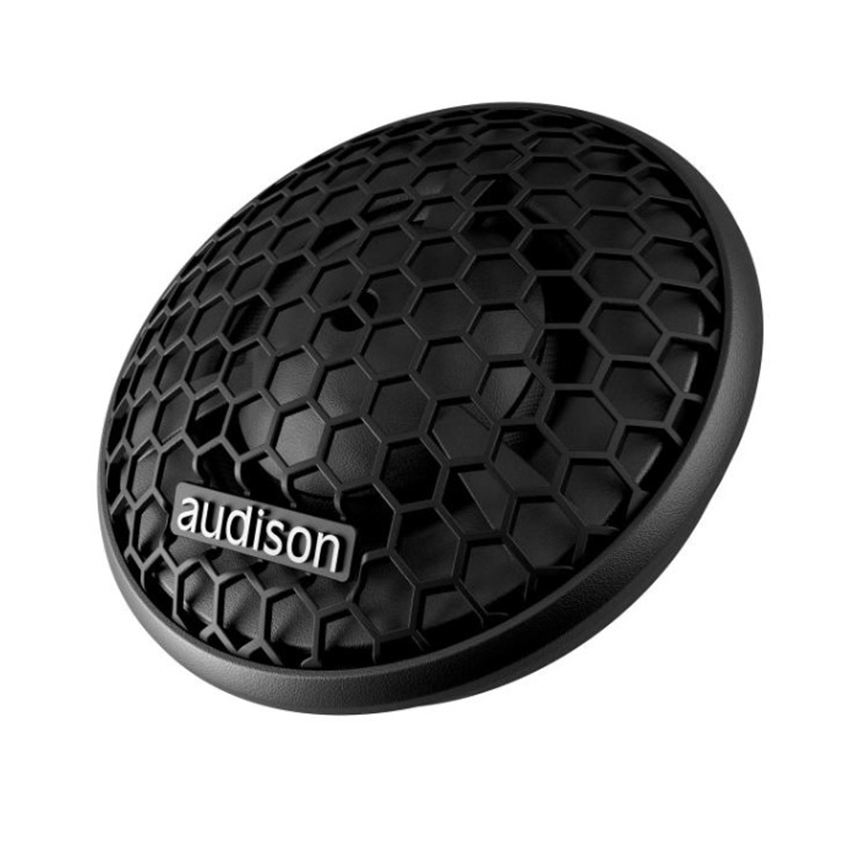

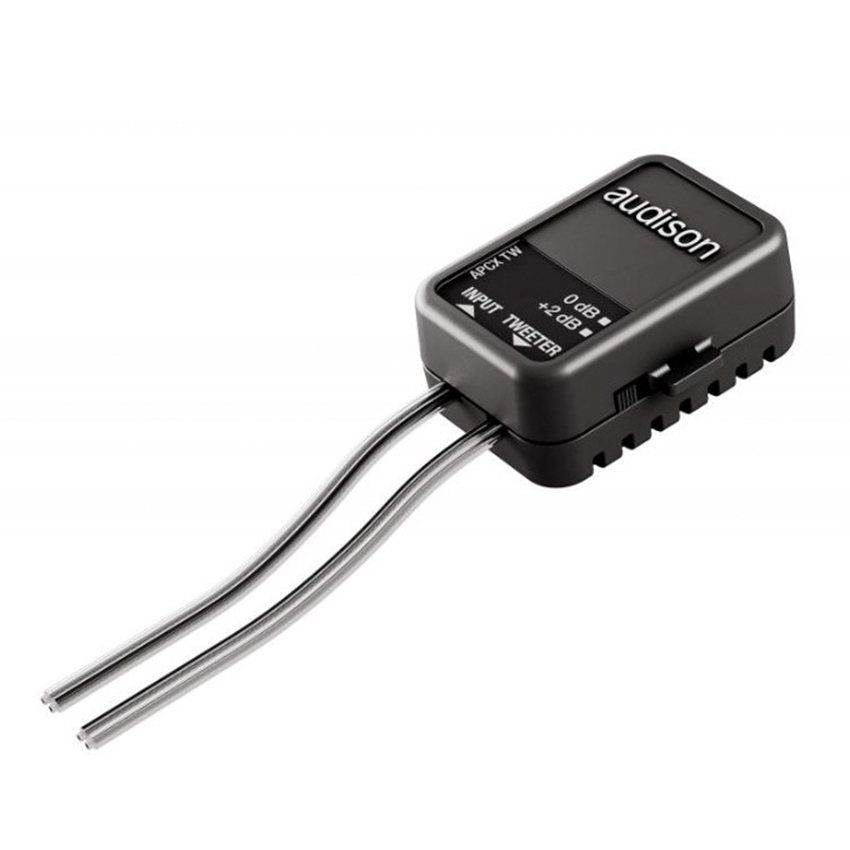

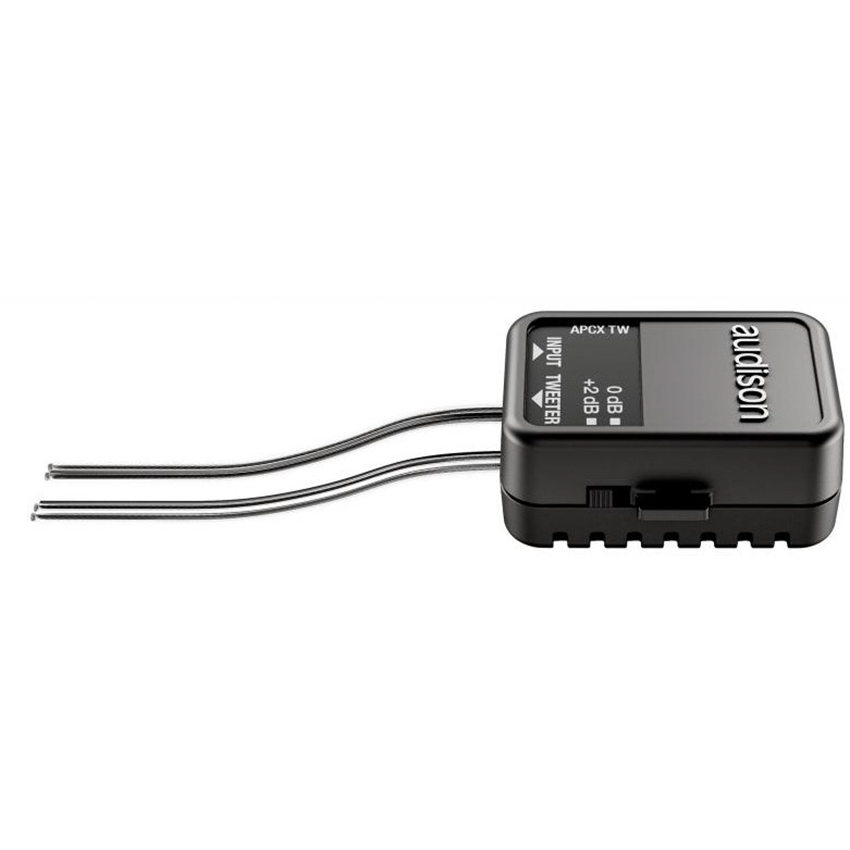

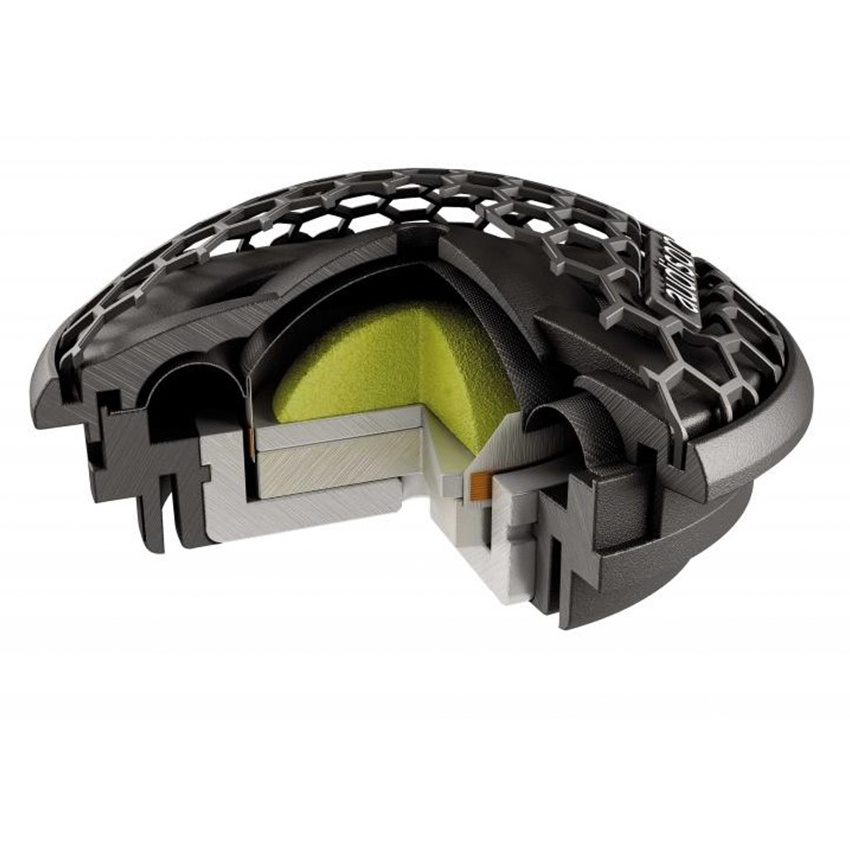

The AP 1 tweeter features a 26 mm diameter emission diaphragm, an acoustic lens designed to compensate for the frequency response within the 10kHz – 13kHz range, a Neodymium REN magnet and extremely small sized dedicated passive crossover.
