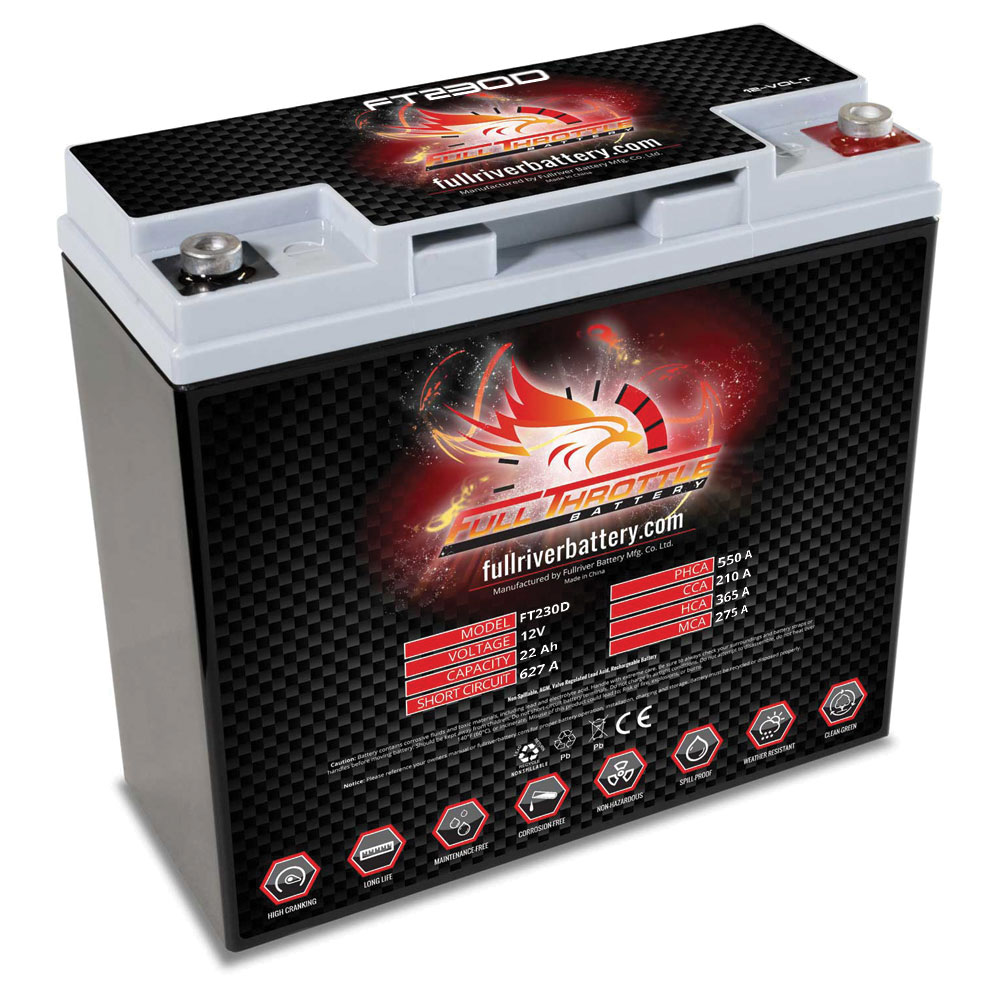

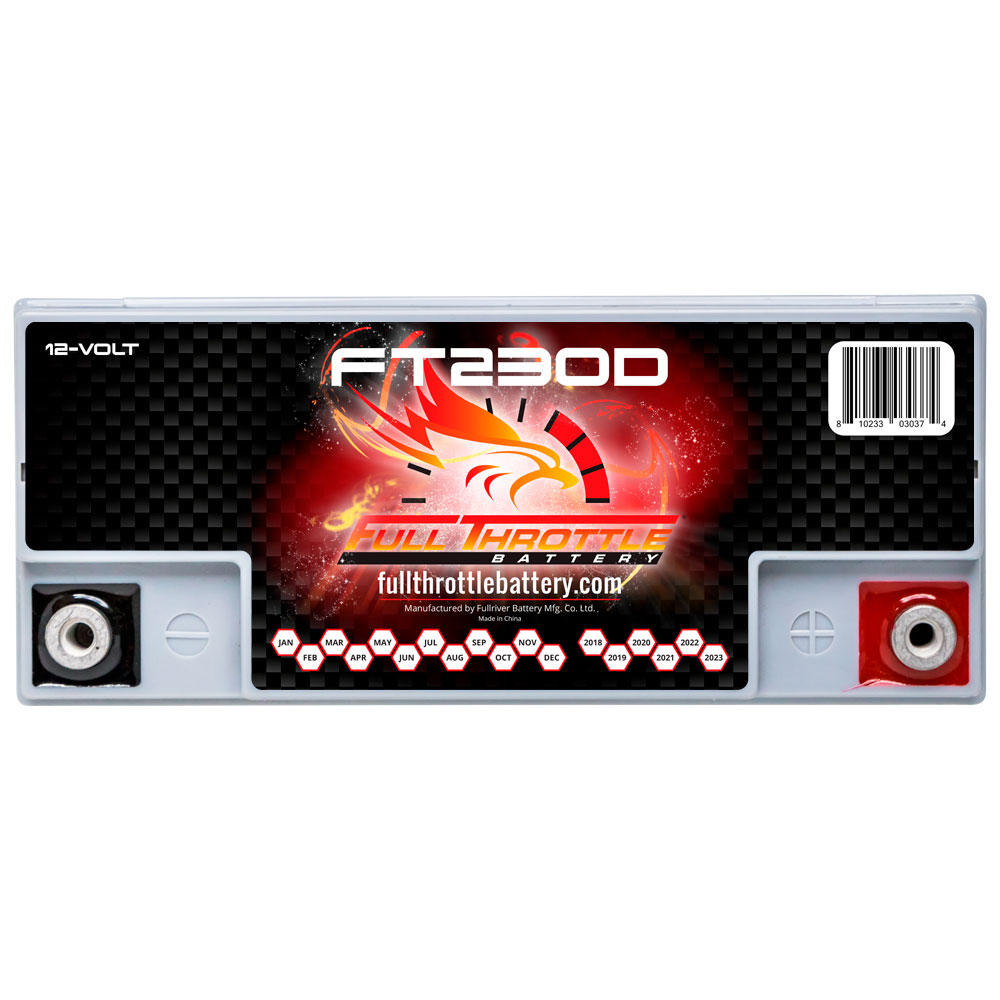

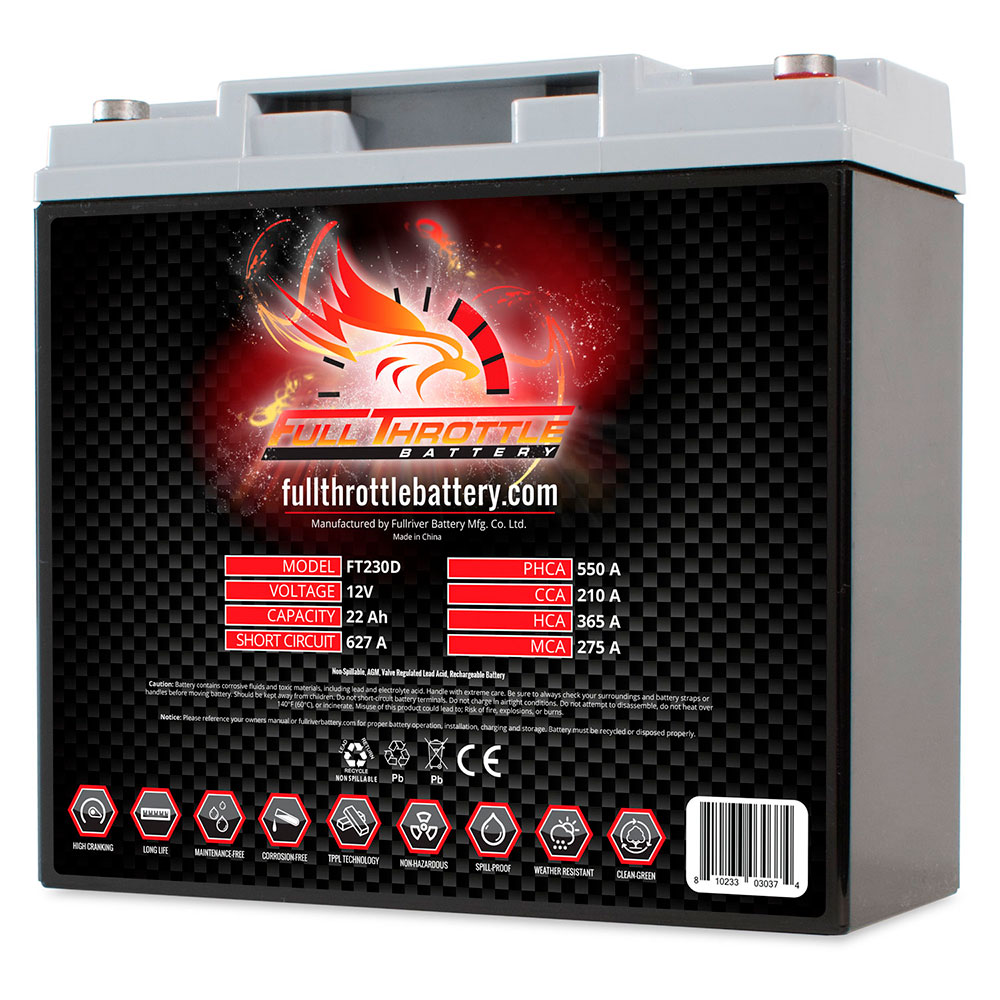

FT230D High-Performance AGM Battery
| Weight | 13.89 lbs |
|---|---|
| Dimensions | 7.13 × 3.03 × 6.57 in |
| Weight (kg) | 6.3 kg |
| Dimensions (mm) | 181 x 77 x 167 mm |
| Group Size | BT19BL-BS |
| Voltage | 12-Volt |
| Terminal Type | M6 |
| CCA | 180 |
| CA or MCA | 240 |
| HCA | 290 |
| PHCA | 500 |
| Capacity @ 20hr Rate | 22 |
| Reserve Capacity @ 25 Amps | 22 |
| Reserve Capacity @ 75 Amps | – |
| Watts | 600 |
| Internal Resistance | 17.0 mΩ |
Description
Related products
-
FT265 High Performance AGM Battery
Weight 15.65 lbs Dimensions 6.7 × 3.9 × 6.89 in Weight (kg) 7.1 kg Dimensions (mm) 170 x 99 x 175 mm Group Size B16C-B Voltage 12-Volt Terminal Type M6 CCA 265 CA or MCA 350 HCA 440 PHCA 625 Capacity @ 20hr Rate 18 Reserve Capacity @ 25 Amps 26 Reserve Capacity @ 75 Amps – Watts 750 Internal Resistance 7.0 mΩ -
FT825-78 High Performance AGM Battery
Weight 46.08 lbs Dimensions 10.28 × 6.77 × 8.31 in Weight (kg) 20.9 kg Dimensions (mm) 261 x 172 x 211 mm Group Size 34/78 Voltage 12-Volt Terminal Type M8 + TP28 + FR45 CCA 825 CA or MCA 1000 HCA 1200 PHCA 1500 Capacity @ 20hr Rate 65 Reserve Capacity @ 25 Amps 135 Reserve Capacity @ 75 Amps 22 Watts 2000 Internal Resistance 5.1 mΩ -
FT438 High Capacity Dual Purpose AGM Battery
- 12-volts
- U1 Group Size
- 60 mins @ 25 amps
- 9 mins @ 75 amps
- 29 AH @ 5HR
- 35 AH @ 20HR
- 525 CA @ 32°C
- 438 CCA @ 0°C
-
FT965-27 High Performance Battery
Weight 69.45 lbs Dimensions 12.09 × 6.65 × 9.33 in Weight (kg) 31.5 kg Dimensions (mm) 307 x 169 x 237 mm Group Size 27 Voltage 12-Volt Terminal Type DT Brass CCA 965 CA or MCA 1170 HCA 1380 PHCA 1950 Capacity @ 20hr Rate 100 Reserve Capacity @ 25 Amps 142 Reserve Capacity @ 75 Amps 40 Watts 2350 Internal Resistance 2.5 mΩ
