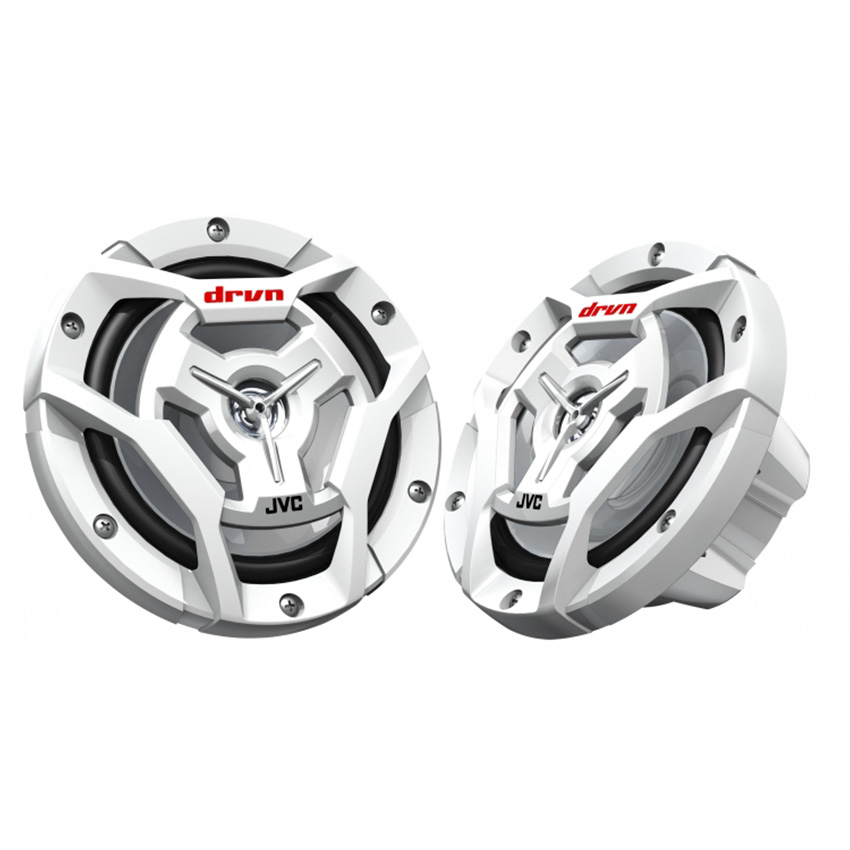

JVC CS-DR6201MW 6-1/2″ 2-Way Coaxial Speakers
[WHITE] 6-1/2″ 2-Way Coaxial Speakers featuring Water Resistant Woofers / UV Resistant Grilles / Max Power 150W / RMS Power (4) 50W
Description
Woofer
- Size: 16 cm (6-1/2”)
- Diaphragm: Water Proof PP Cone
- Surround: Thermoplastic Elastomer
- Magnet: Ferrite
Tweeter
- Size: 2.5 cm (1”)
- Type: Balanced Dome
- Diaphragm: Poly-Ether Imide
- Magnet: Ferrite
General
- Frequency Response: 60 – 18,400Hz
- Power Handling Capacity (RMS): 50W
- Power Handling Capacity (Peak Power): 150W
- Impedance: 4 ohms
- Sound Pressure Level: 87dB
- Weight (w.Grille): 0.82kg (1.9lbs)
- Magnet Mass: 230g (8.1oz)
- Mounting Depth: 61.5 mm (2-7/16″)
