Monitor
- Screen Size
- 6.2″ Wide VGA
- Touch Panel
- Clear Resistive
- Monitor Touch Control
- Yes
- Customizable GUI
- Yes
- Key Illumination Color
- Variable
- Dimmer
- Yes
- Multilingual Display
- Yes[3]
- Wallpaper Capture
- Yes
- Live Wallpaper
- Yes
Media Playback
- MP3 Compatible with Tag
- USB
- WMA Compatible with Tag
- USB
- WAV Compatible with Tag
- USB
- AAC Compatible with Tag
- USB
- FLAC Compatible with Tag
- USB( Up to192kHz/24bit )
- H.264 Compatible
- USB
- WMV Compatible
- USB
- MPEG 1/2 Compatible
- USB
- MPEG 4 Compatible
- USB
- AVI/MKV Compatible
- USB
- JPEG File Playback
- USB
- PNG File Playback
- USB
- BMP File Playback
- USB
Bluetooth Control
- Built-in Bluetooth[1]
- Yes (Version 4.1, Wired-Mic included)
- Hands Free Call
- Yes (HFP1.7 Wideband Speech)
- 2 Phones Full-Time Connection
- Yes
- Audio Streaming & Control (A2DP, AVRCP)
- Yes
- 5 BT-Audio Connection
- Yes
- Voice Dialing (voice recognition compatible mobile phone required)
- Yes
- Phone Book Access Profile (PBAP)
- Yes
- Alphabetical Search for Phone Book
- Yes
- Auto Pairing for iPhone/Android
- Yes
Android Control
- WebLink
- Yes (via USB)
- Android Music Playback
- Yes (via Bluetooth(R))
- Pandora Control
- Yes (via Bluetooth(R))
- Spotify Control
- Yes (via Bluetooth(R))
iPod/iPhone Control
- CarPlay[2]
- Yes (via USB)
- WebLink
- Yes (via USB)
- iPod/iPhone Music Playback
- Yes (via USB or Bluetooth(R))
- Pandora Control
- Yes (via USB or Bluetooth(R))
- Spotify Control
- Yes (via USB or Bluetooth(R))
USB
- USB Port
- x1 (High Speed)
- Position
- Front
- USB Power Supply
- Yes (1.5A High Current Charging)
- Drive Change Mode for Mass Storage Class (selectable from internal/external memory)
- Yes
Radio Tuner
- SiriusXM Ready
- Yes
- Radio Broadcast Data System (RBDS)
- Yes
- Preset Stations
- 20(FM:15ch, AM:5ch)
- Automatic Presetting (Strong Station Sequential Memory)
- Yes
- FM
- Frequency Range
- 87.9-107.9MHz
- AM
- Frequency Range
- 530-1,700kHz
Audio
- Maximum Power Output (Front & Rear)
- 50Wx4
- Full Bandwidth Power (Front & Rear)
- 22W x 4 (Full Bandwidth Power, at less than 1% THD)
- EQ
- Yes (13-Band Graphic EQ)
- Preset EQ
- Yes (8Preset + 4user)
- Bass Boost
- Yes
- High-Pass Filter/Low-Pass Filter
- Yes/Yes
- 3-Way X’over
- Yes
- High-Resolution Audio
- Yes
- K2 Technology
- Yes
- Space Enhancement
- Yes
- Sound Response
- Yes
- Sound Lift
- Yes
- Volume Link EQ
- Yes
- Time Alignment
- Yes
- Dual-Zone Function
- Yes

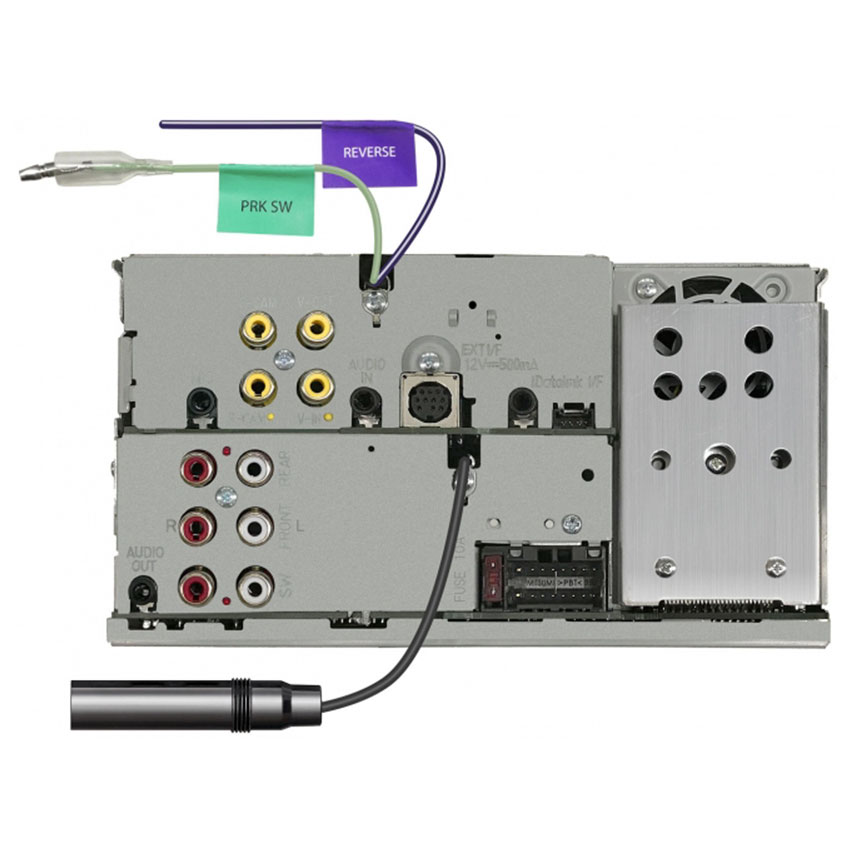

Inputs and Outputs
- AV Input
- V:RCA / A:Mini Jack
- Video Out
- RCA
- Rear view camera Input
- Yes
- Front view camera Input
- Yes
- Line Output Terminals
- 3 Pairs (Front + Rear + Subwoofer)
- Pre-output Level/Impedance
- 4.0V / 10k ohms
- Subwoofer Output with Level/Frequency Control
- Yes
General
- iDatalink Maestro Ready
- Yes
- Remote Control Application
- Yes
- Back Up Memory
- Yes
- Face Type
- Viewing Angle Adjustment
- Yes (0 – 20 degree, default : 0 degree) 4 steps
- Shallow Chassis
- Yes
- Wireless Remote Control
- Ready (RM-RK258 required)
- Steering Remote Control Ready
- Yes
- Dimensions (W x H x D)
- Installation Size
- 7″ x 3-15/16″ x 2-15/16″ (178 x 100 x 75 mm)
- Weight
- 2.43 lbs. (1.1kg)
- Unit weight in individual package
- 3.75 lbs. (1.7kg)
