5000.1D 1Ω
Power @ 12.6V @ 1Ω: 1 x 5000 W RMS
Power @ 12.6V @ 2Ω: 1 x 2750 W RMS
Power @ 12.6V @ 4Ω: 1 x 1513 W RMS
Power @ 14.4V @ 1Ω: 1 x 6530 W RMS
Power @ 14.4V @ 2Ω: 1 x 3592 W RMS
Power @ 14.4V @ 4Ω: 1 x 1975 W RMS
5000.1D 2Ω
Power @ 12.6V @ 2Ω: 1 x 5000 W RMS
Power @ 12.6V @ 4Ω: 1 x 2750 W RMS
Power @ 14.4V @ 2Ω: 1 x 6530 W RMS
Power @ 14.4V @ 4Ω: 1 x 3592 W RMS
Operating Voltage: 9V – 16V
Current Draw (Music): 261 A
Current Draw (Max): 522 A
THD (10% Rated Power): 0.08%
Damping Factor: >1000
SNR: 75dB
Frequency Response: 5 Hz – 18 kHz
Dimensions (L x W x H): 11.81 x 9.06 x 2.8 in

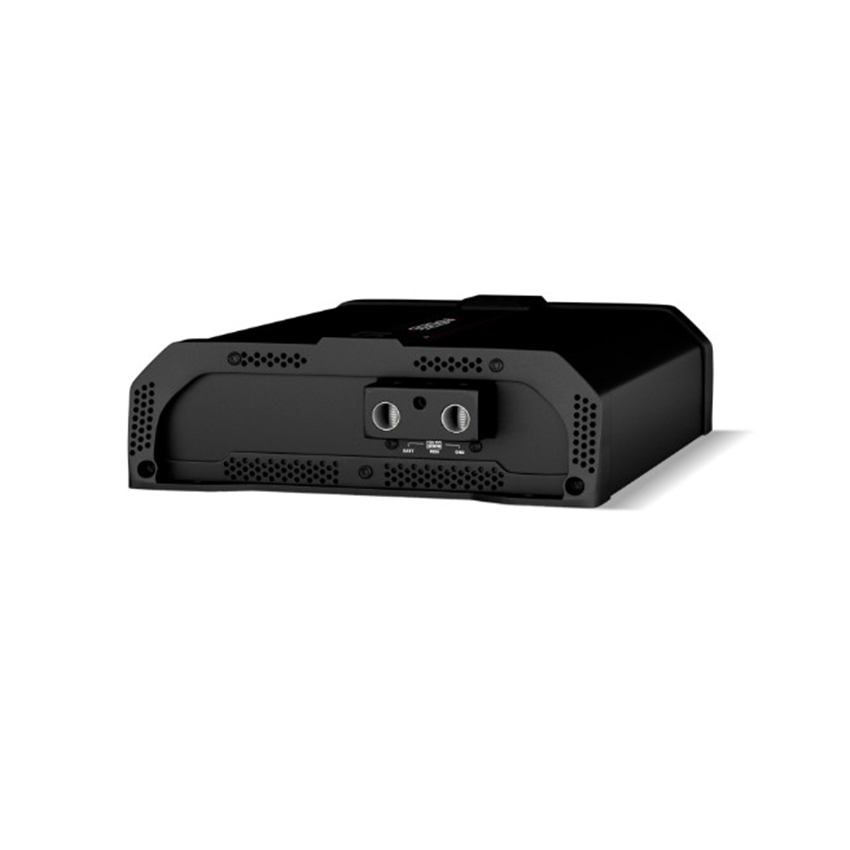

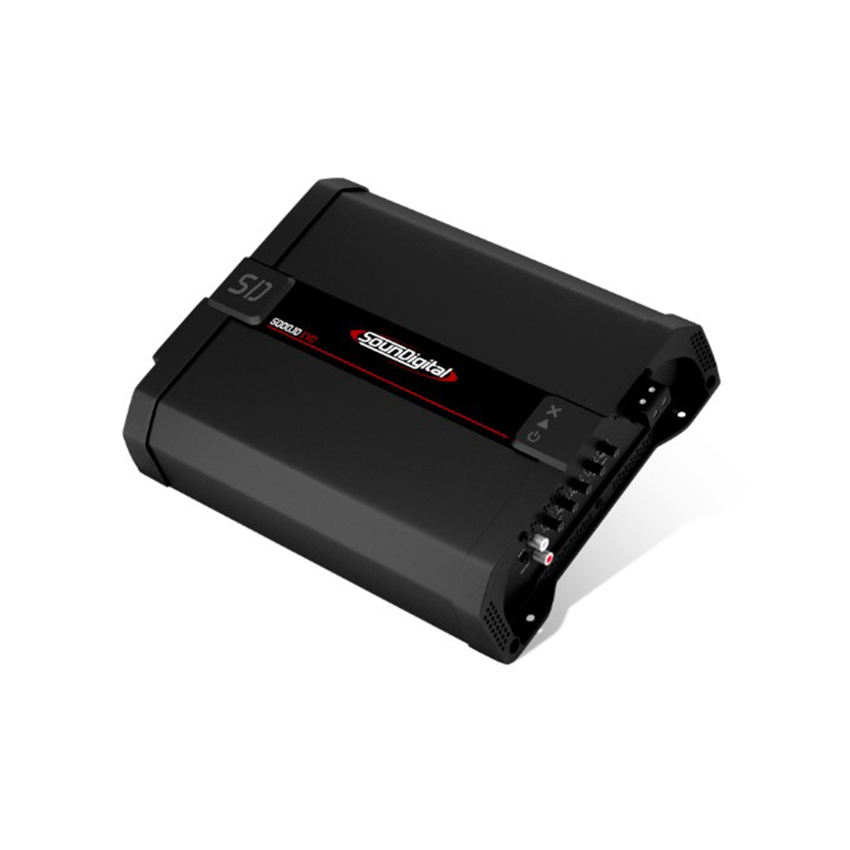

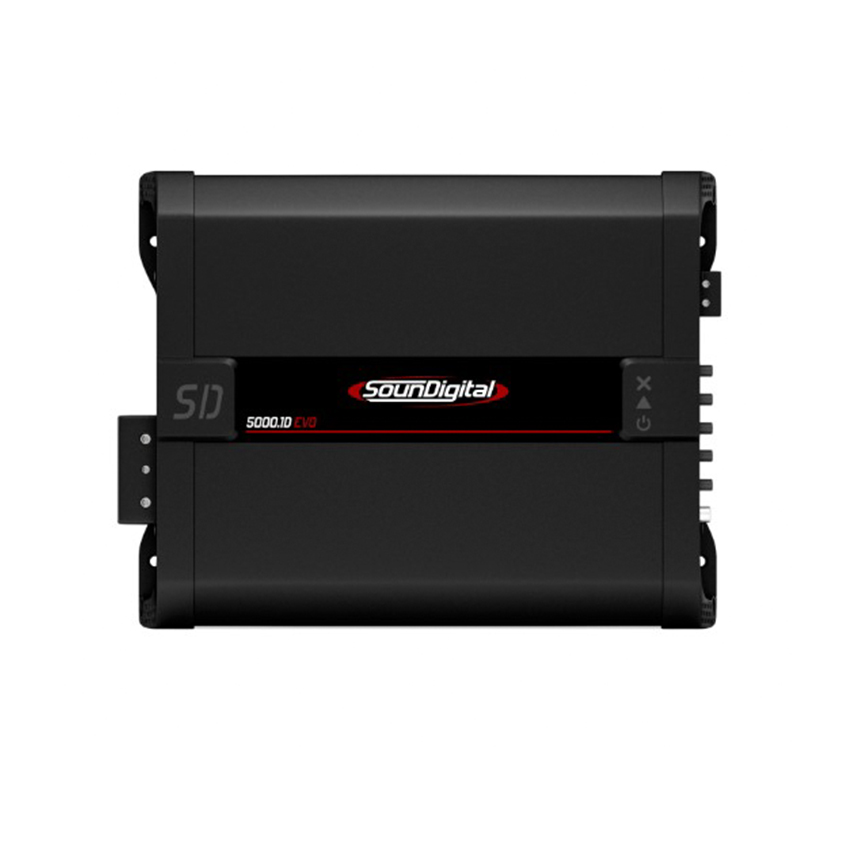

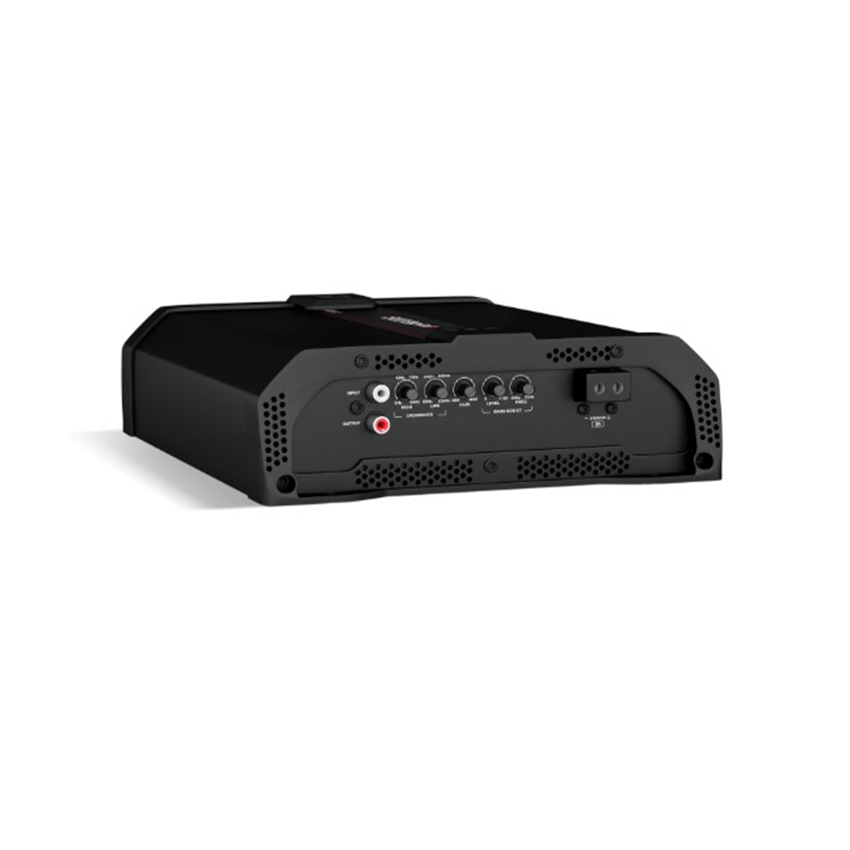

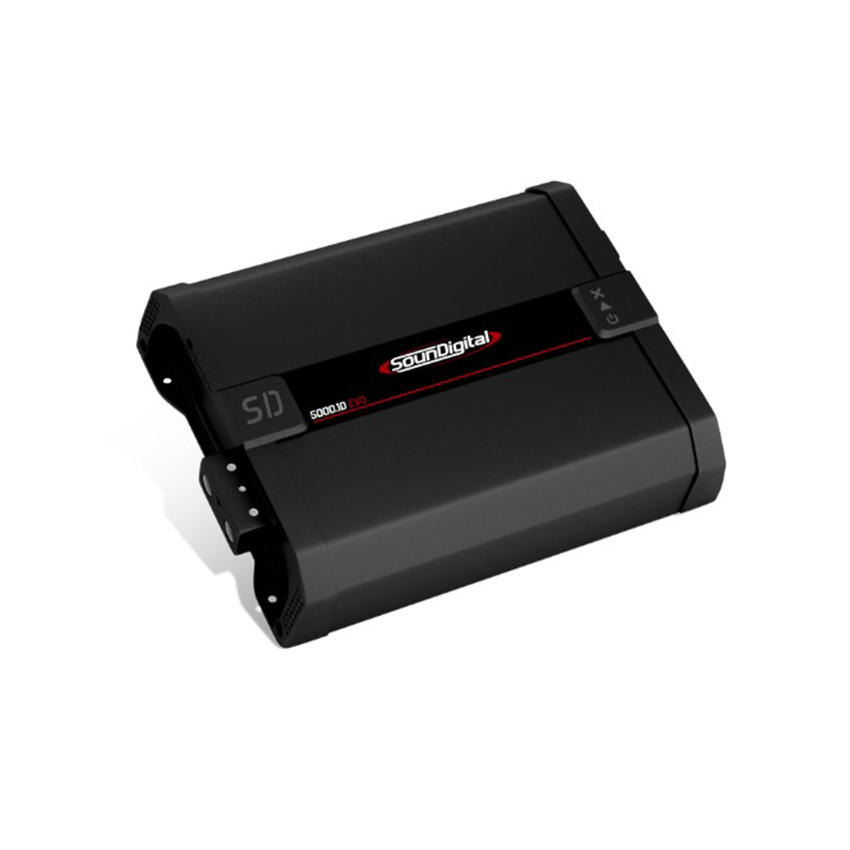

SounDigital 5000.1D EVO
THE NEW EVO LINE is here to stay and has every resource to produce the perfect sound. Quality, efficiency, stability, onboard crossover and innovative design.
Description
