250.1D 1Ω
Power @ 12.6V @ 1Ω: 250 W RMS
Power @ 14.4V @ 1Ω: 300 W RMS
250.1D 2Ω
Power @ 12.6V @ 2Ω: 250 W RMS
Power @ 14.4V @ 2Ω: 300 W RMS
Frequency Response: 5Hz to 20 kHz
Damping Factor: 400
THD + N: 0.01%
Crossover HPF Fixed at 80Hz
Crossover LPF Fixed at 80Hz
Current Draw (Max): 22A
Current Draw (Music): 11A
Dimensions (L x W x H): 5.24 x 3.94 x 1.38 in

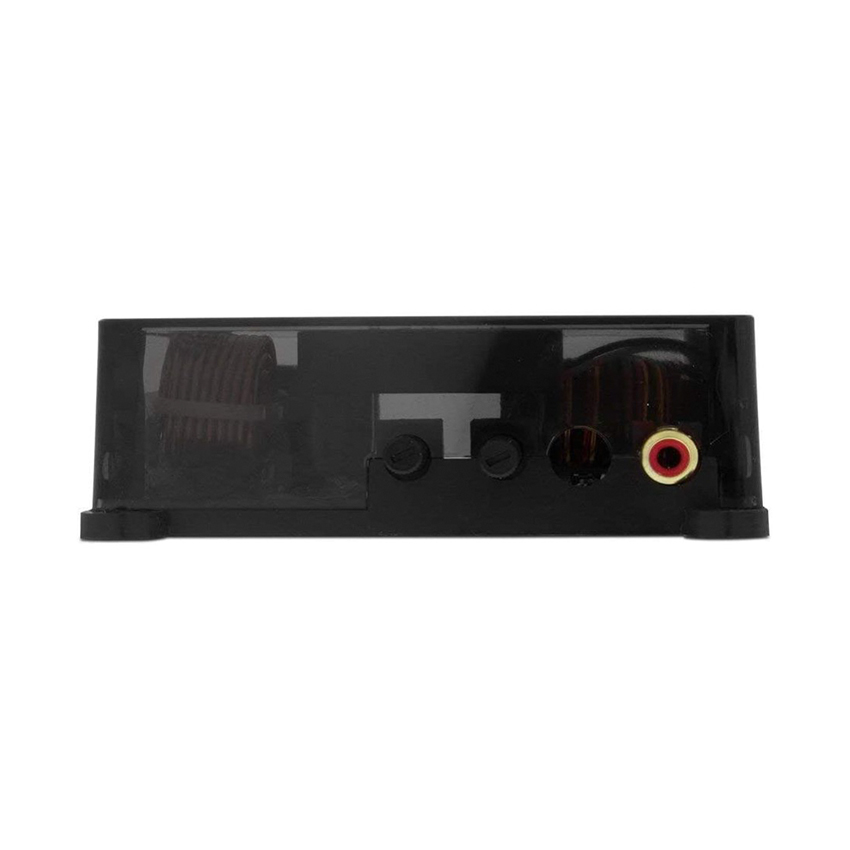

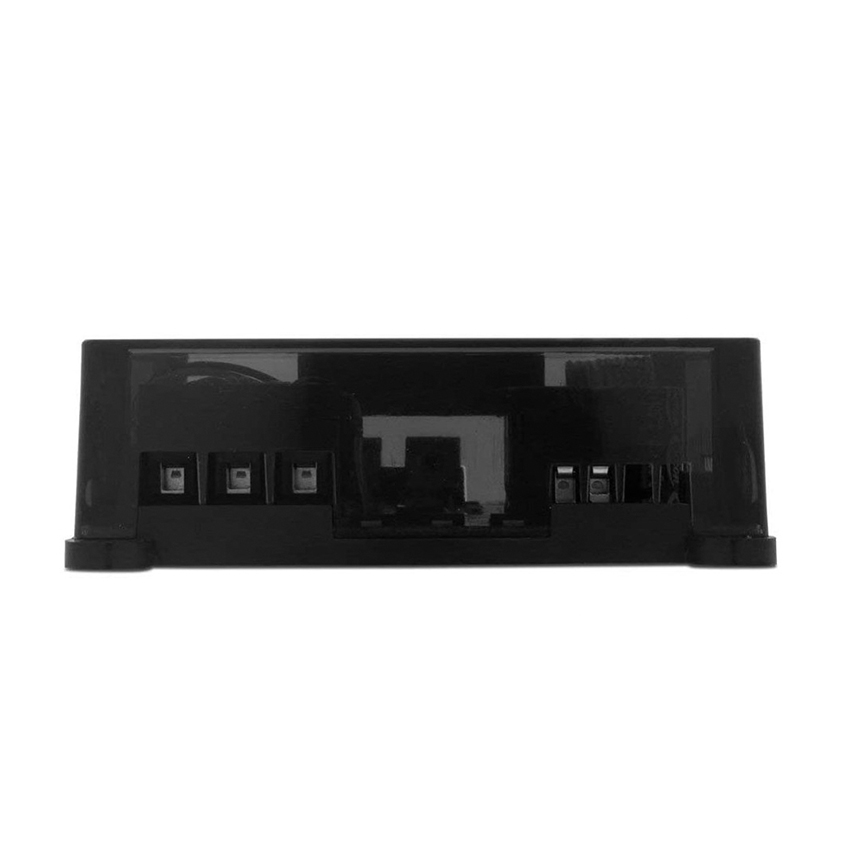

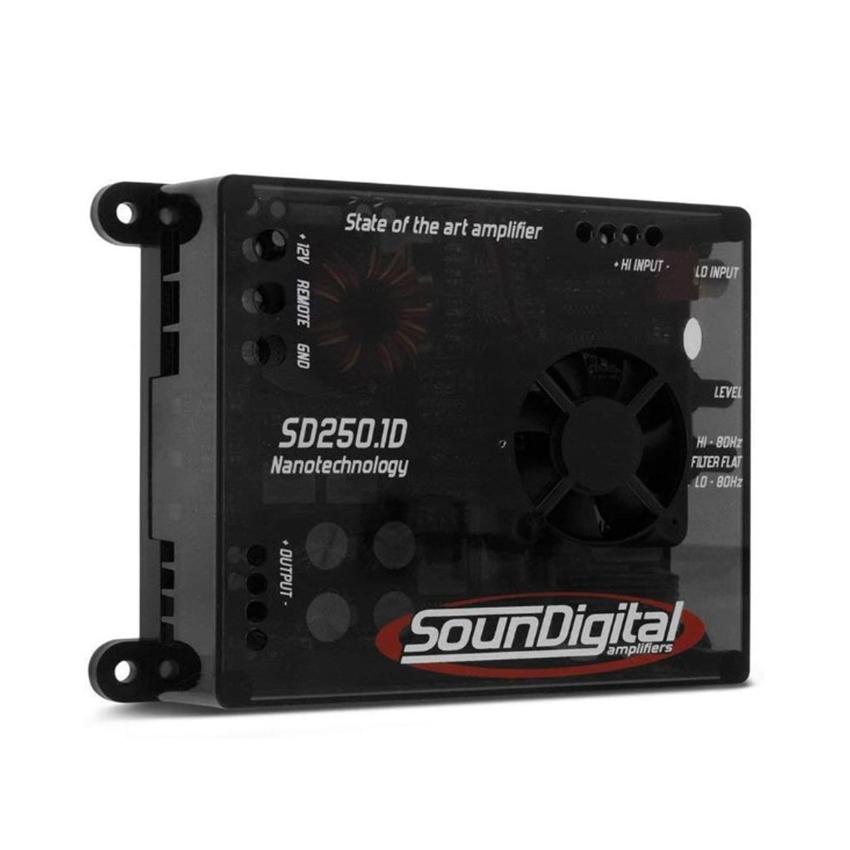

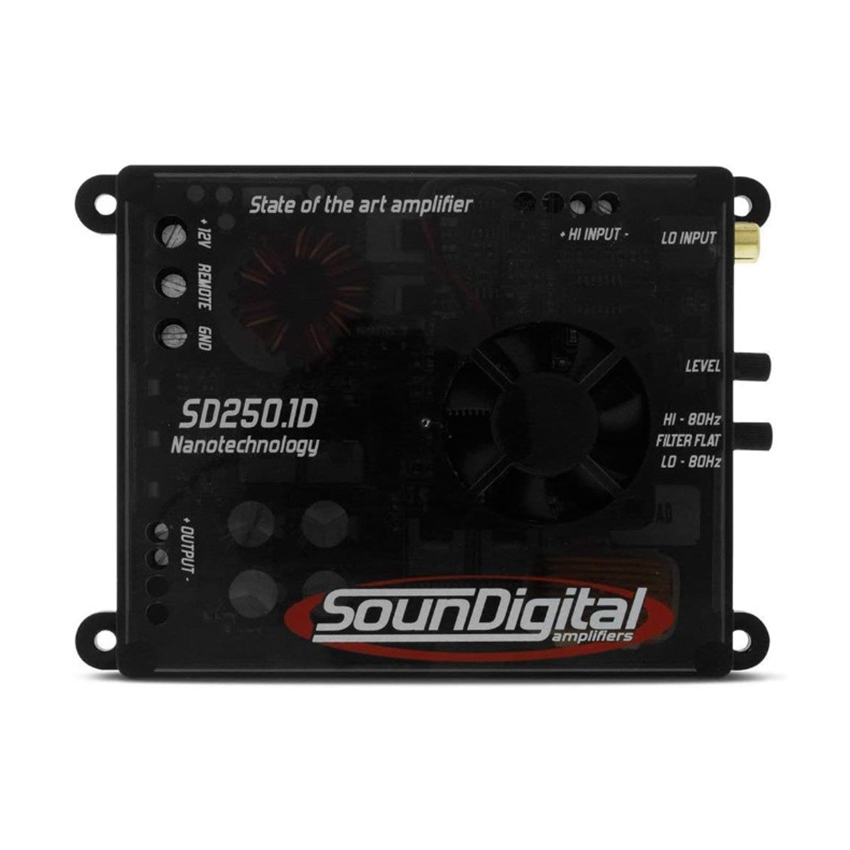

SounDigital SD 250.1D
The Soundigital SD250.1D Amplifier has 1 channel with 250 W RMS, 1 or 2 ohms * depending on the version chosen.
This model is suitable for use in woofers, drivers, super tweeters and subwoofers in this power range.
