Power @ 4Ω: 4 x 120 watts RMS, Plus 1 x 250 watts RMS
-
THD @ Rated Power < 0.5%THD
-
Power @ 2Ω: 4 x 200 watts RMS, Plus 1 x 380 watts RMS
-
Power Bridged @ 4Ω: 2 x 360W RMS, Plus 1 x 350 watts RMS
-
Signal to Noise Ratio > 85dB
-
THD + Noise < 0.5%
-
Frequency Response 15Hz to 30KHz ±1dB
-
Input Sensitivity .25v to 5v
-
Dimensions in mm: 160(W) x 52(H) x 300(L) Overall: 160(W) x 52(H) x 342(L)

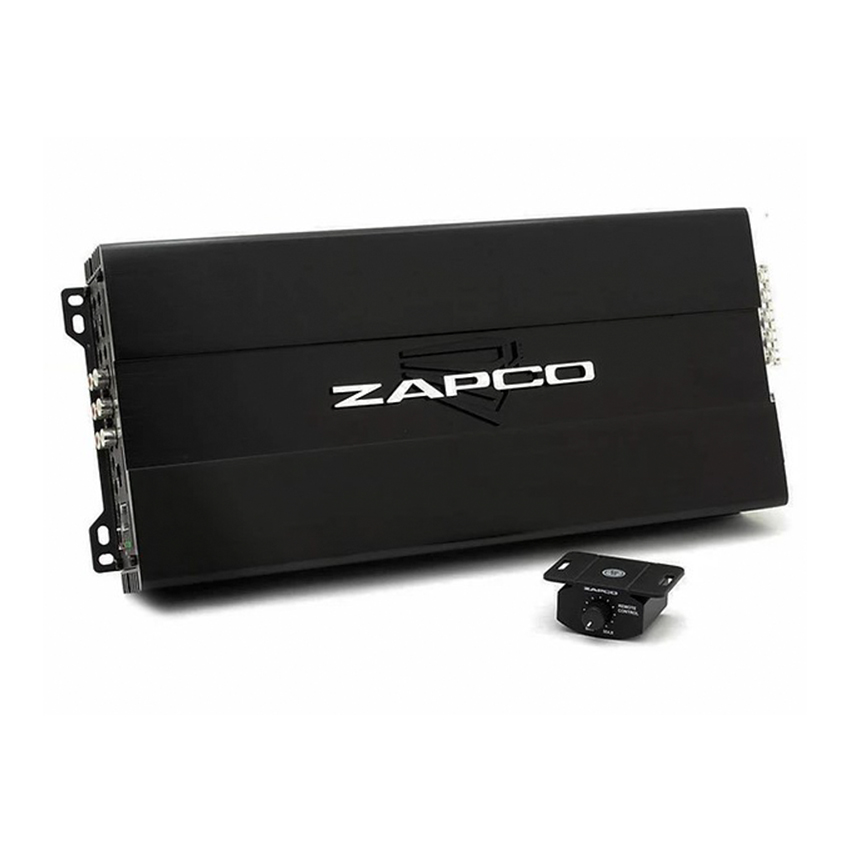

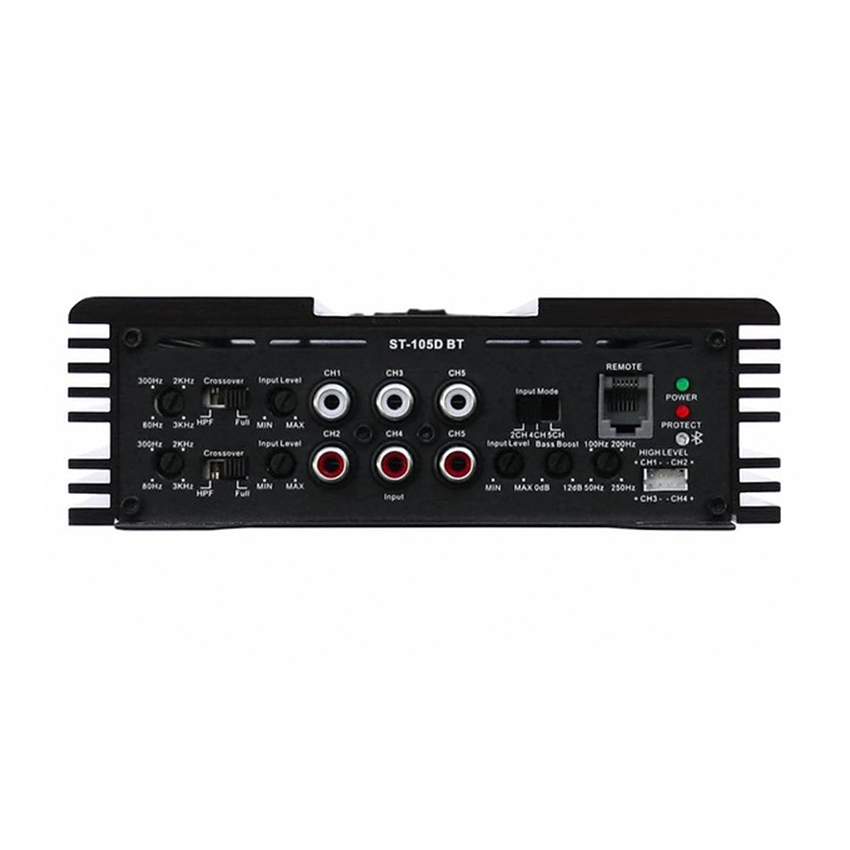

Zapco ST-105D.BT
5 Ch. Class D Amp/Bluetooth
The Studio D amps are full range Class D amps with great sound, a compact chassis, and more crystal clear power than the competition.
Description
Related products
-
Helix G FOUR
The new G amplifiers are more than just impressive power packs. They unite innovative technology, extensive functionality and best sound with a very attractive price to performance ratio.
If we do not talk about their more obvious features, such as fully active crossovers with highpass, lowpass, bandpass, bass boost and input mode switch for flexible input signal routing and smart high level input with ADEP circuits, we can still talk about how the G series also provides Start-Stop capability which is an exceptional feature in this price range. Wait, that’s not all… a remote control for adjusting the subwoofer level is included as part of the deal.
With such an extensive list of features in this piece of equipment, it is really not hard to realize a sound system in your car that has a great sound and lots of power for when you need it most.
Furthermore, the G amplifiers have the compact and straight HELIX design that has become synonymous with HELIX. In addition, for those who love a good light show, the logo has been illuminated for your viewing pleasure.
-
Helix D FOUR
The new entry into the HELIX world! The amplifiers of the D series are solely modest with respect to pricing. Everything else is thoroughly pure HELIX quality without any compromises. Loads of power, excellent measurement data and a whole bunch of features ensure a pristine and crispy sound experience!
Absolutely nothing has been missed for powerful sound reproduction – the active crossover with highpass filter, lowpass filter, bandpass and bass boost are equally as self-evident as the intelligent highlevel input that incorporates Audiotec Fischer´s proprietary ADEP circuit. It is even possible to add an optional volume remote control for the amp channels C and D which is very useful if those outputs are firing a subwoofer.
The elegant design not only states right from the beginning the amp’s heritage but also allows an easy integration into your car thanks to its compact dimensions. That is sound-tuning at its best!
-
Match PP 86DSP
The powerhouse within the MATCH series for individual system concepts – not less than eight amplifier channels and even nine separate DSP channels make this extremely powerful Plug & Play amplifier to a sound virtuoso for the expansion of OEM sound systems.
The “heart” of the PP 86DSP is a 64 Bit DSP of the latest generation with enormous processing power and ultimate sound optimization opportunities. The package is complemented by Audiotec Fischers proprietary Class HD technology which combines maximum efficiency with minimum space requirements.
Besides a 6-channel highlevel input with ADEP circuit (Advanced Diagnostics Error Protection), the PP 86DSP is as well equipped with a MATCH Extension Card slot. This allows adding further interfaces like a Bluetooth® Audio Streaming module or a High Resolution Audio USB soundcard.
Thanks to the professional and user-friendly DSP PC-Tool V4 software with its bunch of new functions an individual sound setup becomes straightforward and intuitive. No doubt – a sound upgrade with this amplifier will be a lot of fun.
-
Helix P SIX DSP MK2
$7,500.00The HELIX P SIX DSP MK2 6-channel amplifier is not built to solely deliver loads of clean power; it also incorporates a cutting-edge 8-channel DSP with outstanding processing power. This amalgamation sets a completely new standard with its “Ultra HD Class D” amplifier technology.
Thanks to its 96 kHz sampling rate and an extended audio bandwidth of more than 40 kHz, this technological feat of precision engineering raises the bar in terms of sound quality.
If we put all that aside for a moment, versatility was another major milestone to be reached during the development process. Therefore, we are happy to introduce HEC. The HELIX Extension Card (HEC) slot allows you to extend the devices possibilities well beyond the commonplace RCA jacks. Interfaces like a Bluetooth® Audio Streaming module or a High Resolution Audio USB soundcard have been crafted to give you more options than ever.
Two fully-processed RCA outputs provide connectivity for daisy-chaining more amplifiers without a need for a second DSP.
The configuration of the internal 64 Bit DSP could hardly be easier thanks to the professional and user-friendly DSP PC-Tool software that offers almost unlimited sound tuning features.
Despite this impressive feat of engineering, the P SIX DSP MK2 has not shed its HELIX design heritage; it still has the clean design while remaining very compact for ease of installation.
