Power @ 1Ω: 1 x 1650 watts
-
THD @ Rated Power < 0.2%THD
-
Power @ 2Ω: 1 x 1100watts
-
Power @ 4Ω: 1 x 750 watts
-
Signal to Noise Ratio > 85dB
-
THD + Noise < 0.2%
-
Efficiency > 85%
-
Frequency Response 10Hz to 200Hz ±1dB
-
Input Sensitivity .25v to 5v
-
Dimensions in mm: 160(W) x 52(H) x 353(L) Overall: 160(W) x 52(H) x 378(L)

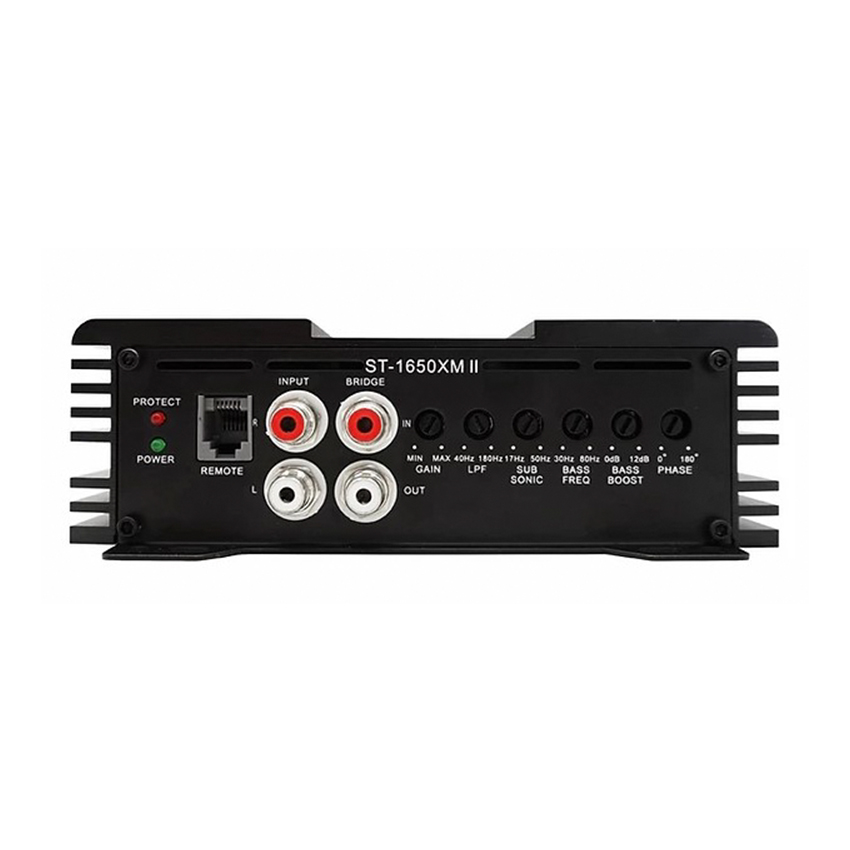

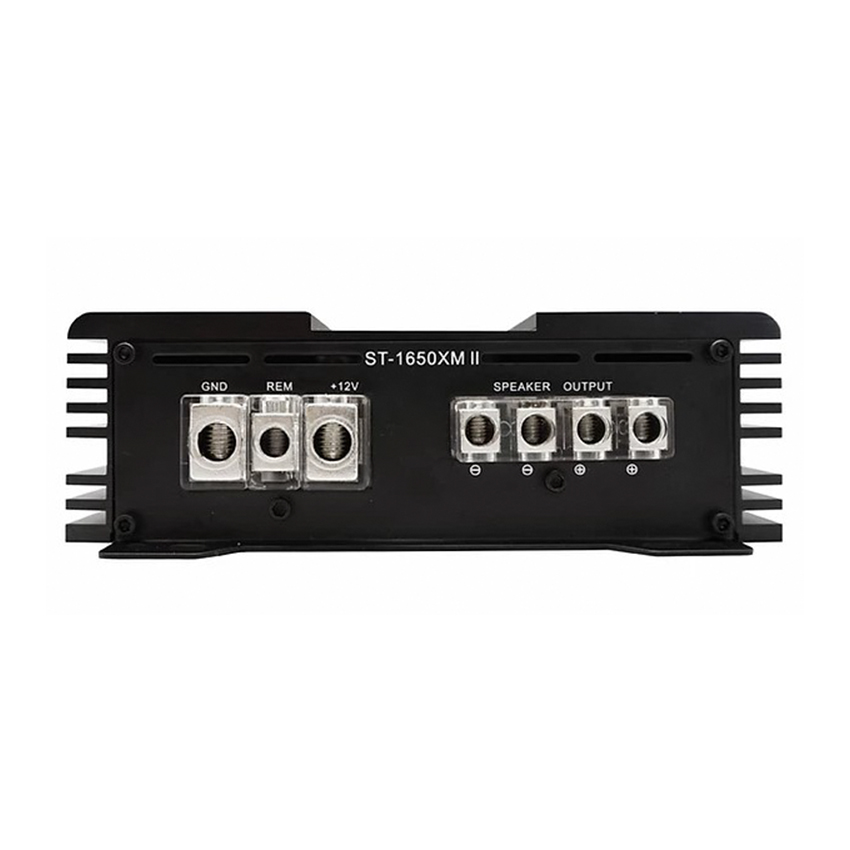

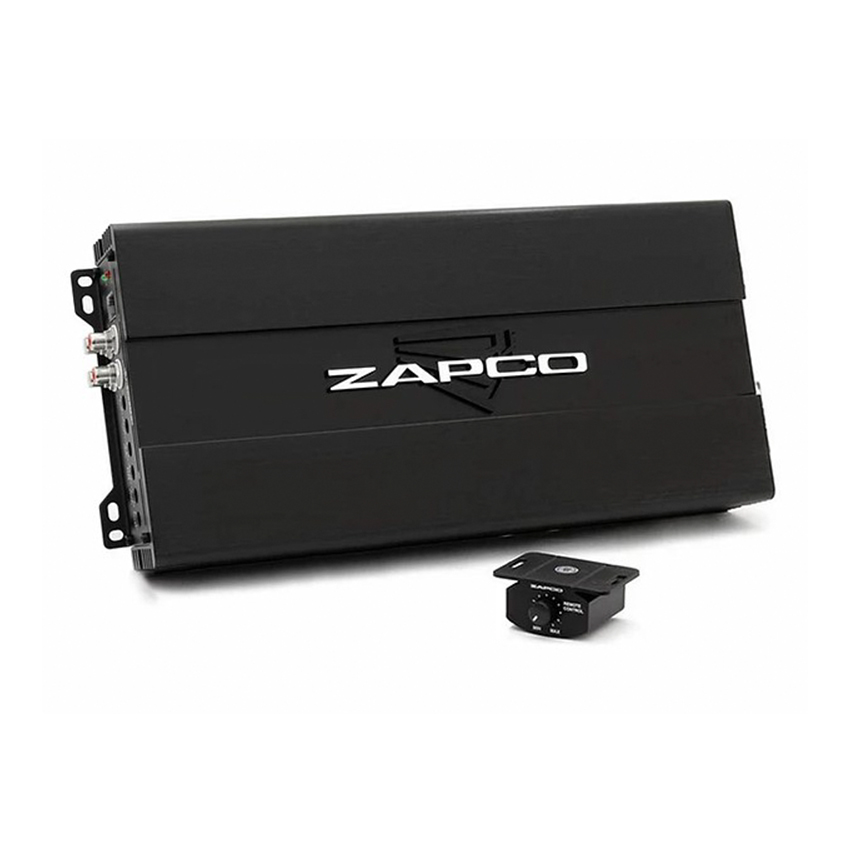

Zapco ST-1650XM II
Mono Class D Bass Amplifier
All the ST-XM Class D bass amps are 1Ω stable as necessary in today’s market.
