Power @ 4Ω: 6 x 100 watts
-
THD @ Rated Power < 0.5% THD
-
Power @ 2Ω: 6 x 150 watts
-
Power Bridged @ 4Ω: 3 x 300W RMS
-
Signal to Noise Ratio > 90dB
-
THD + Noise < 0.2%
-
Channel Separation >60dB
-
Frequency Response 15Hz to 30KHz ±1dB
-
Dimensions in mm: 160(W) x 52(H) x 452(L) Overall: 160(W) x 52(H) x 488(L)

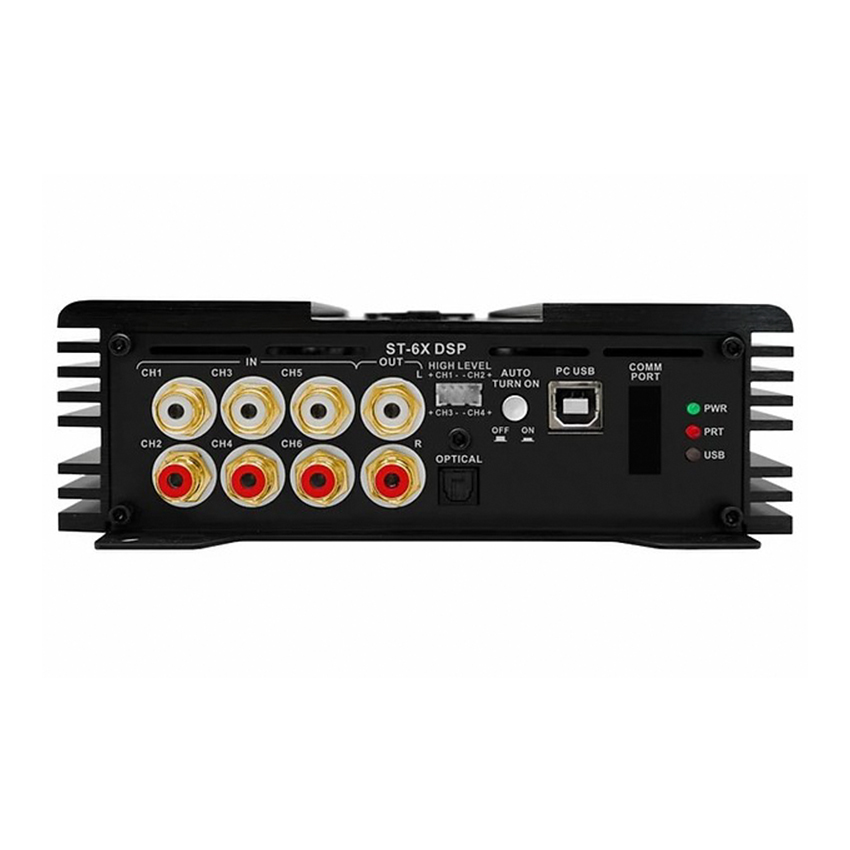

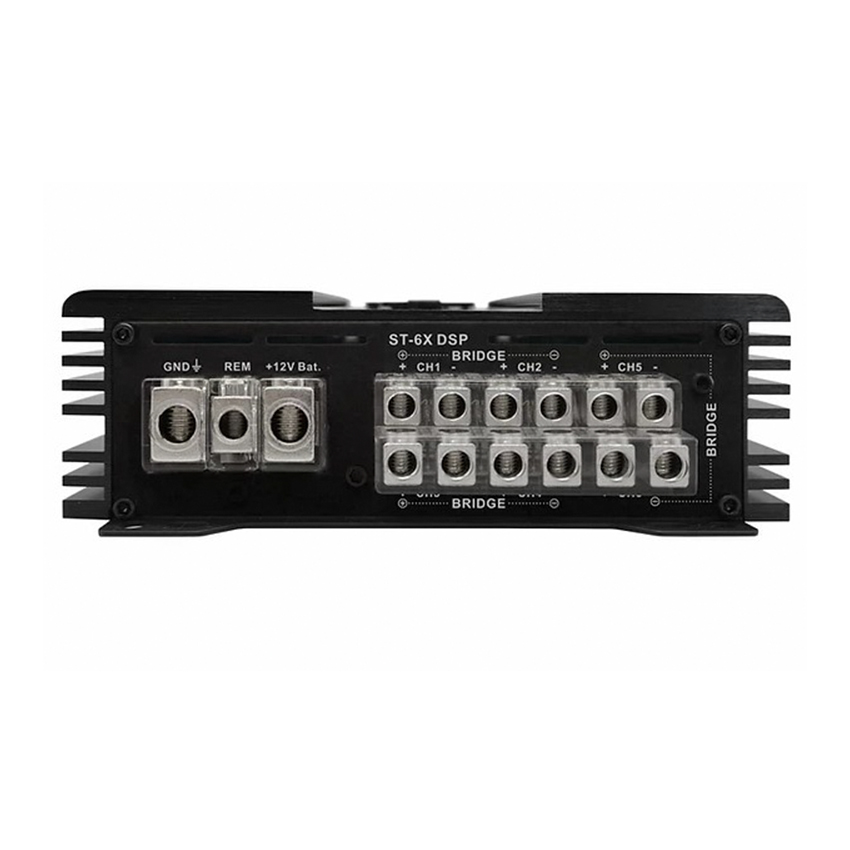

Zapco ST-6X DSP
$3,800.00

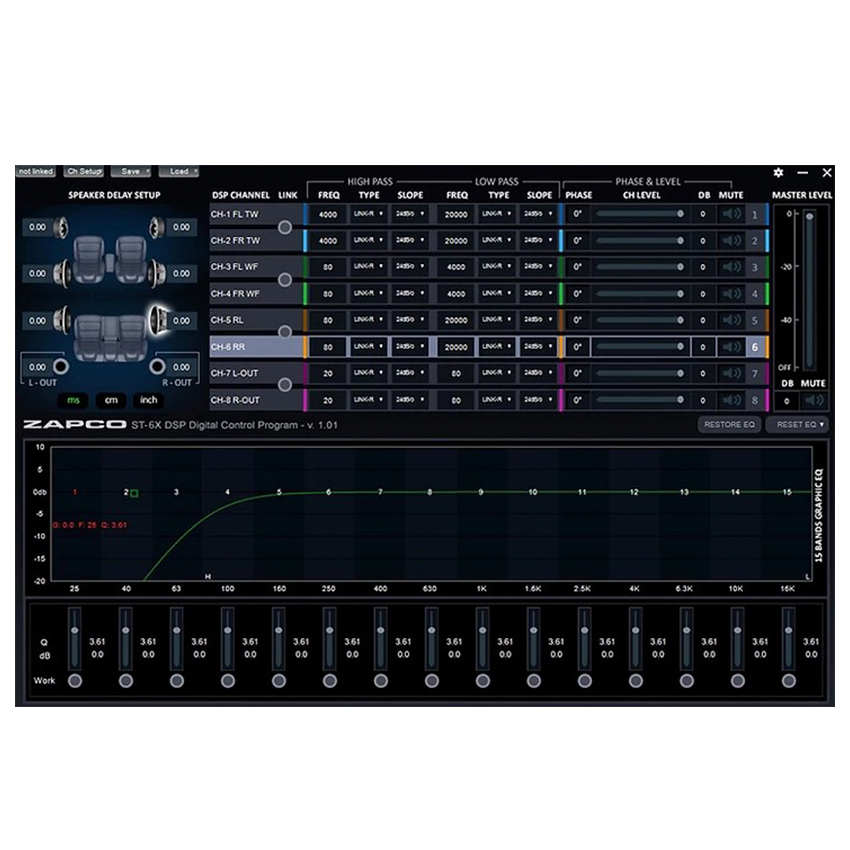

6 Ch. Class AB Amplifier with DSP
The Studio line was designed to bring great Zapco sound quality to a line of compact chassis amplifiers
Description
