Power @ 4Ω: 2 x 165 watts
-
Power @ 2Ω: 2 x 275 watts
-
Power @ 4Ω Bridged: 1 x 550 watts
-
THD @ Rated Power < 0.05%
-
Signal to Noise Ratio > 100dB
-
Frequency Response 10Hz to 30,000Hz ±1dB
-
Input Sensitivity .5v to 8v
-
Dimensions in mm: 190(W) x 62(H) x 301(L) Overall: 190(W) x 62(H) x 328(L)

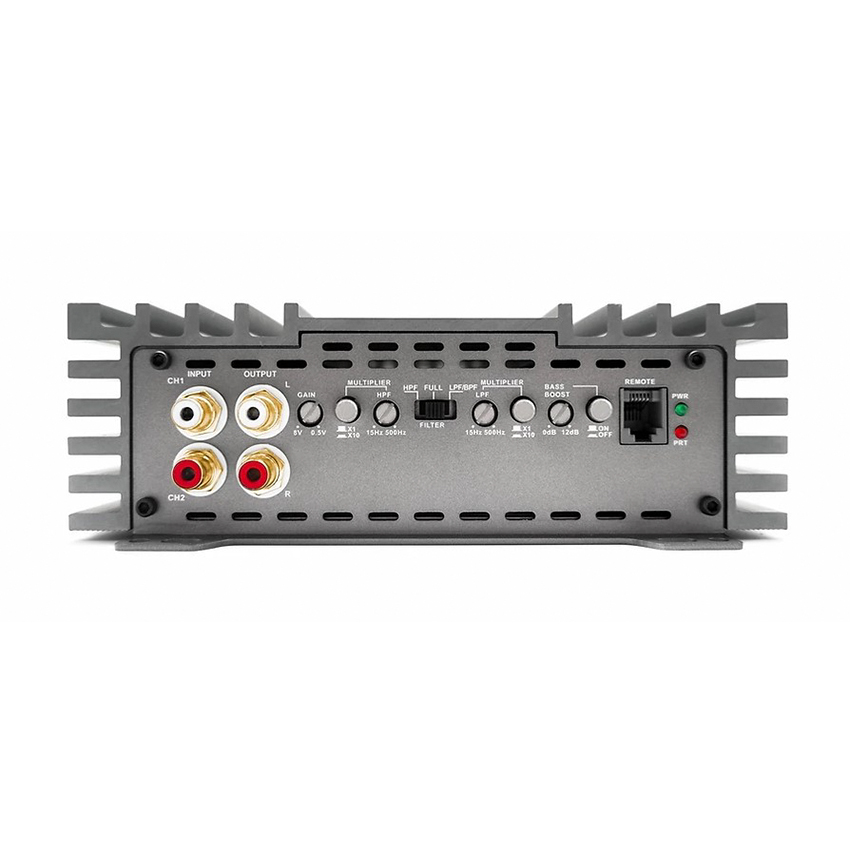

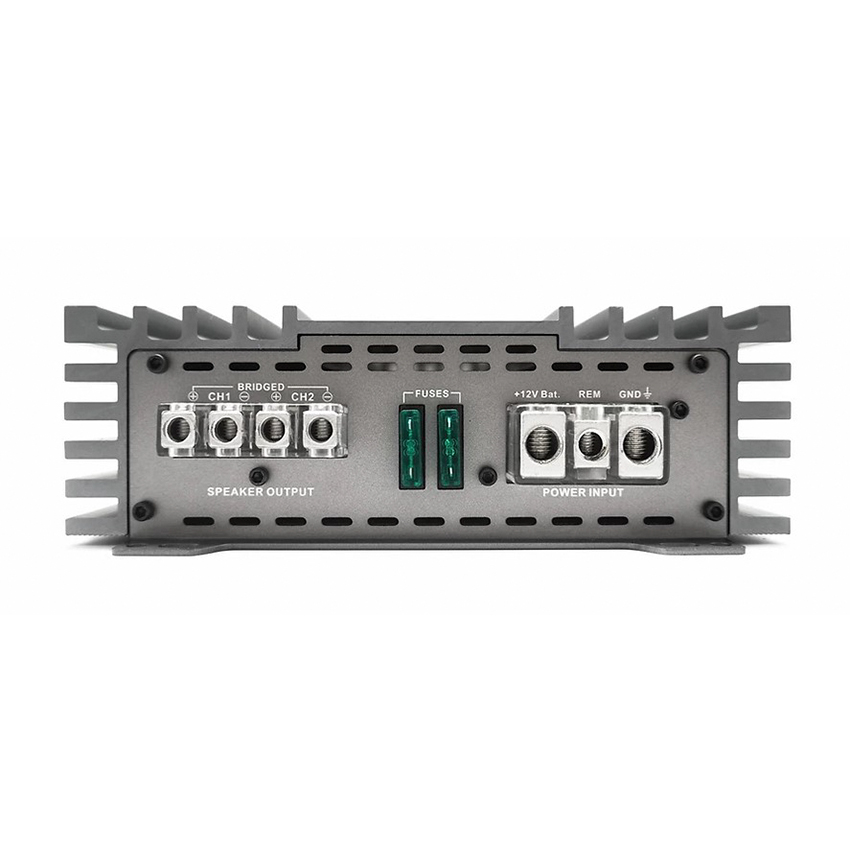

Zapco Z-150.2 II
2 Ch. Sound Q Class AB Amp

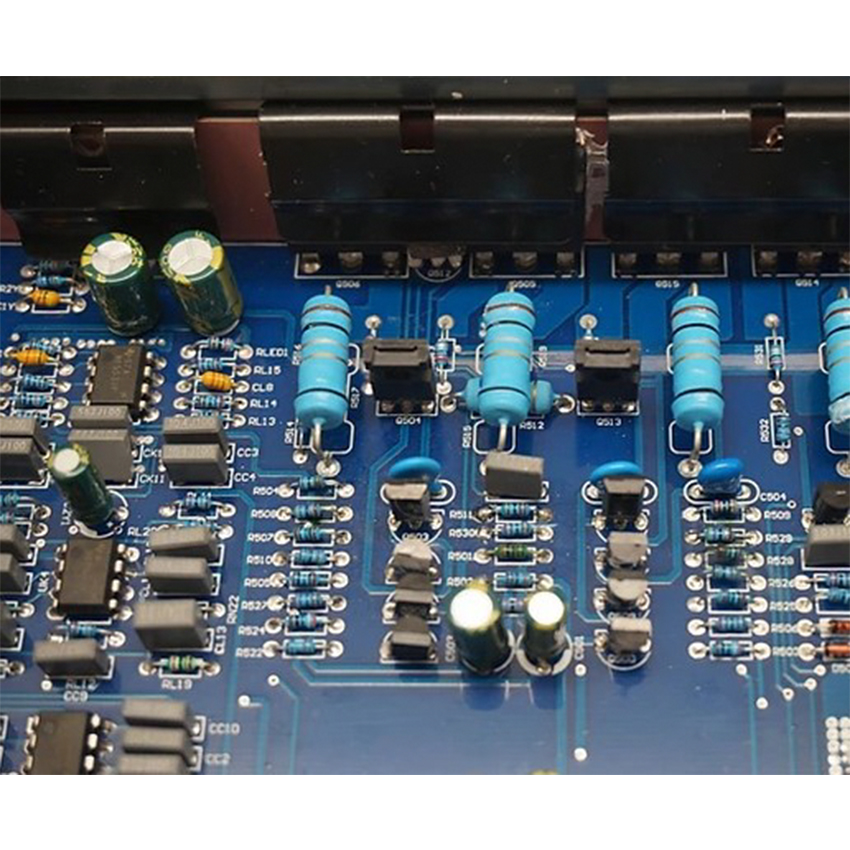

A new TI op-amp that give considerably better signal to noise ratio, with a lower floor noise. We used the same audiophile grade caps that we use in the LX and SP amps. Beefed up the power supply with more storage, less internal resistance and lower inductance for higher efficiency & added more MOSFETS to the power supply for efficiency and current handling.
Description
