Power @ 4Ω: 900 watts
-
Power @ 2Ω: 1800 watts
-
Power @ 1Ω: 3000 watts
-
Linked @ 2Ω: 6000 Watts
-
THD @ Rated Power < 0.05%
-
Signal to Noise Ratio > 90dB
-
Damping factor: > 350
-
Efficiency: 86%
-
Input Sensitivity .2v to 8v
-
Dimensions in mm: 190(W) x 62(H) x 620(L) Overall: 190(W) x 62(H) x 657(L)

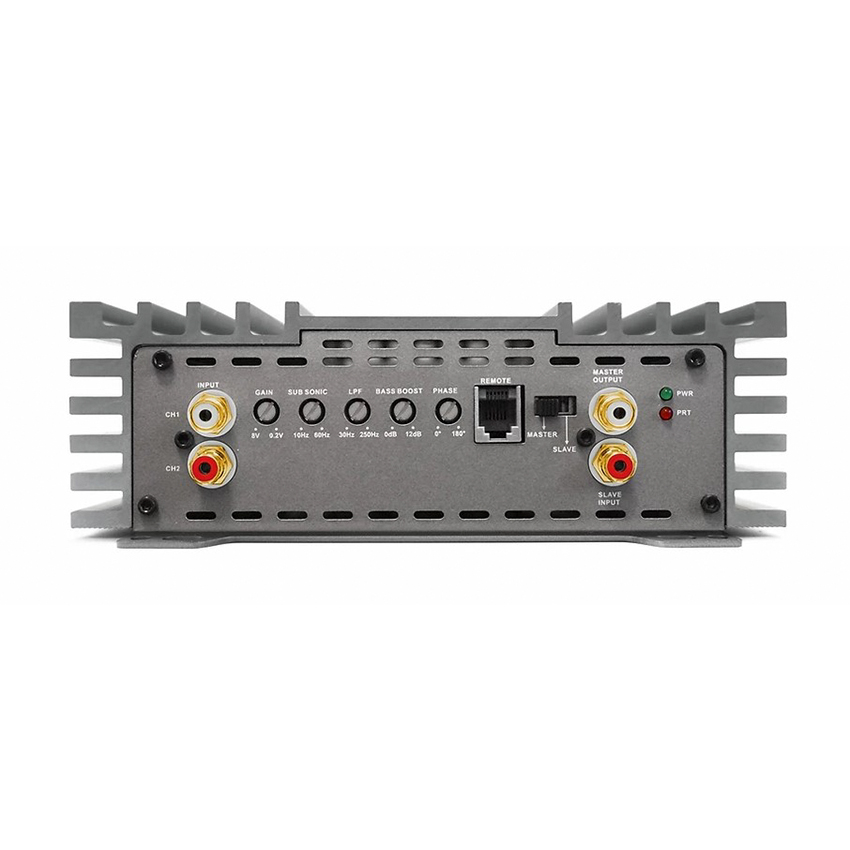

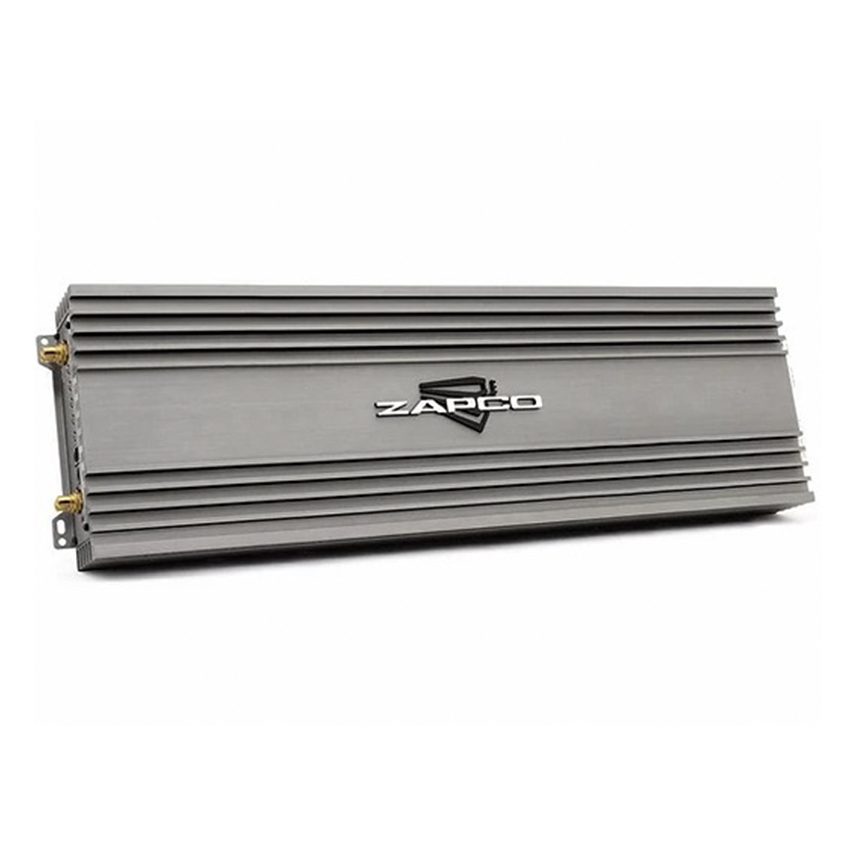

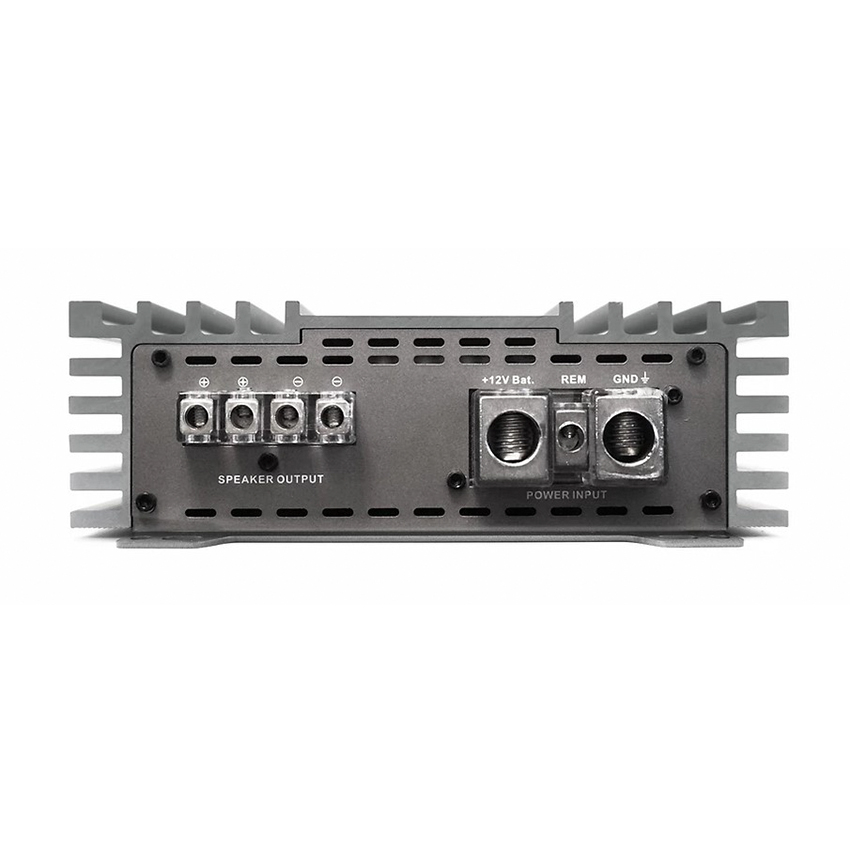

Zapco Z-3KD II
Mono Sound Q Class D Bass Amp

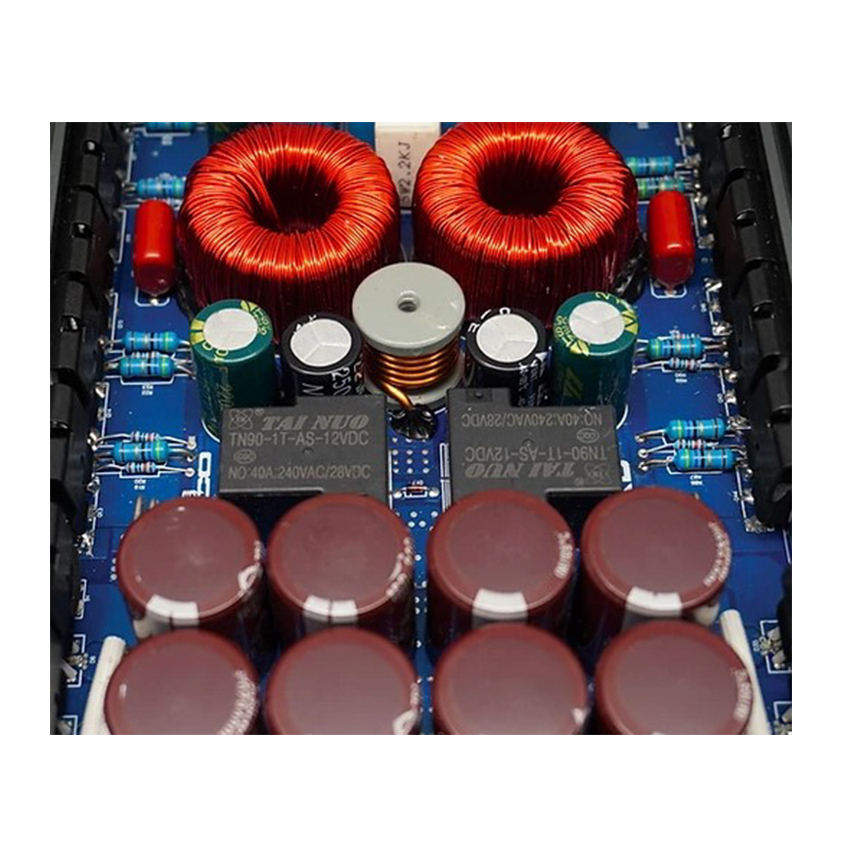

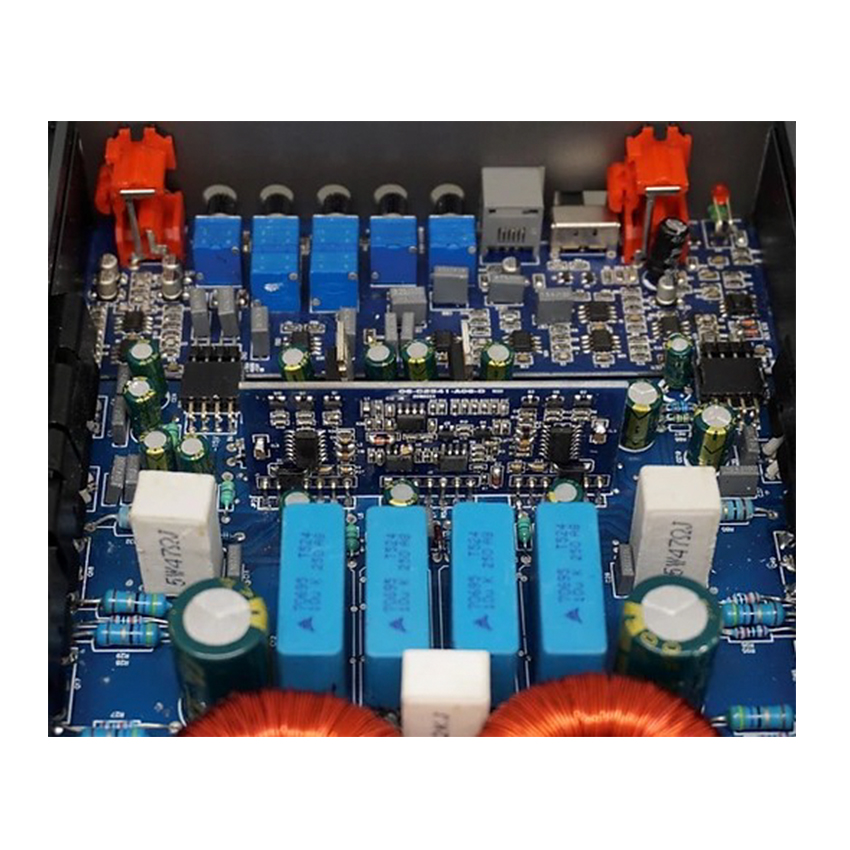

A beefed up power supply. Increased power. New high end audio caps like the SQ amps. New TI low noise op-amps like the SQ amps. Improved tiffany style panel mount RCA connectors. The end plates are now recessed like the LX amps for a cleaner look. The plastic controls have been replaced by the new metal pots and switches.
Description
