Power @ 4Ω: 4 x 80 watts
-
THD @ Rated Power < 0.5%THD
-
Power @ 2Ω: 4 x 120 watts
-
Power Bridged @ 4Ω: 2 x 240W RMS
-
Signal to Noise Ratio > 95dB
-
THD + Noise < 0.5%
-
Channel Separation >60dB
-
Frequency Response 15Hz to 30KHz ±1dB
-
Input Sensitivity .25v to 5v
-
Dimensions in mm: 160(W) x 52(H) x 300(L) Overall: 160(W) x 52(H) x 342(L)

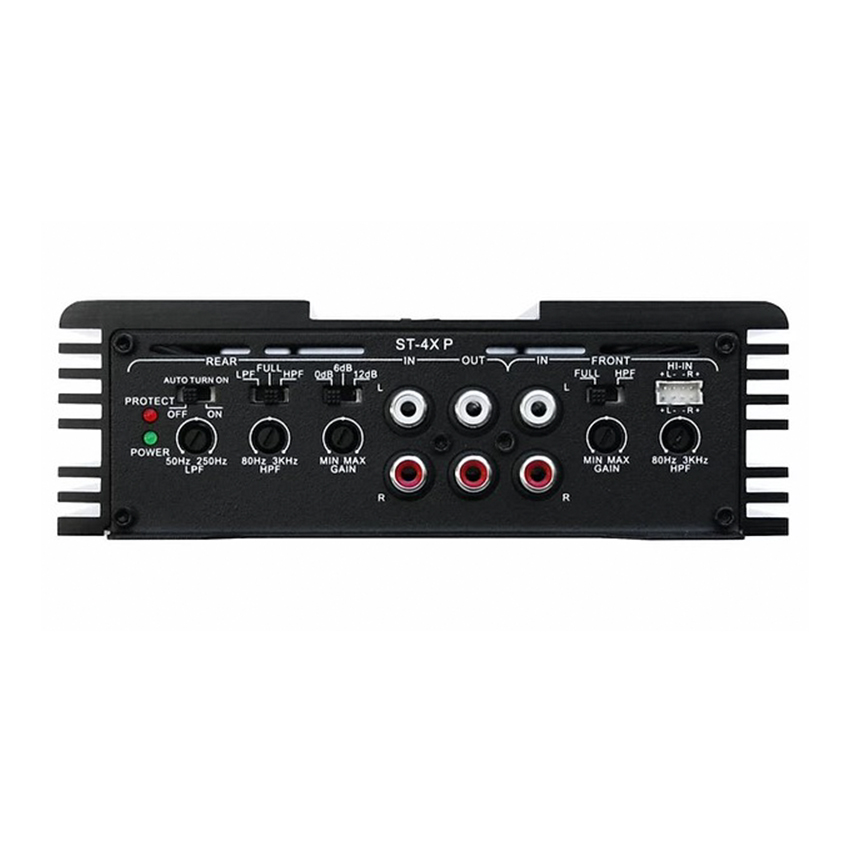

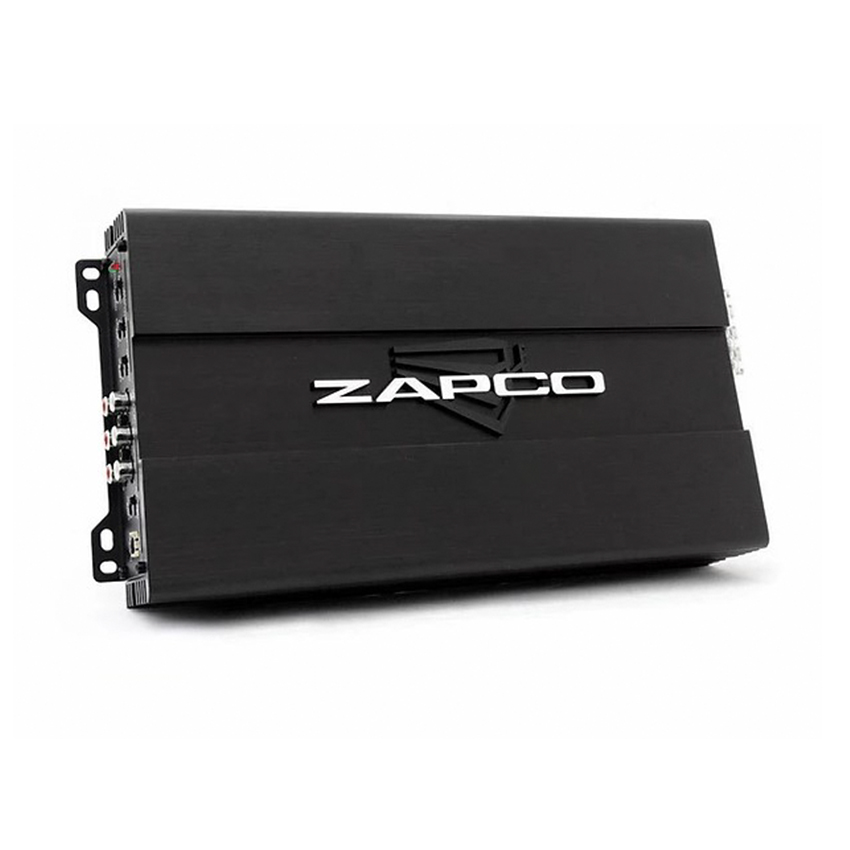

Zapco ST-4X P
4 Ch. High Power Class AB Amplifier
The most important feature shared by all the ST-X amps is the legendary Zapco sound quality, developed with over 40 years of experience.
Description
