Power @ 4Ω: 4 x 100 watts Plus 1 x 200 watts
-
THD @ Rated Power < 0.5%THD
-
Power @ 2Ω: 4 x 150 watts Plus 1 x 300 watts
-
Power Bridged @ 4Ω: 2 x 300 watts RMS Plus 1 x 300 watts
-
Signal to Noise Ratio > 95dB
-
THD + Noise < 0.5%
-
Channel Separation >60dB
-
Frequency Response 15Hz to 30KHz ±1dB
-
Input Sensitivity .25v to 5v
-
Dimensions in mm: 160(W) x 52(H) x 392(L) Overall: 160(W) x 52(H) x 432(L)

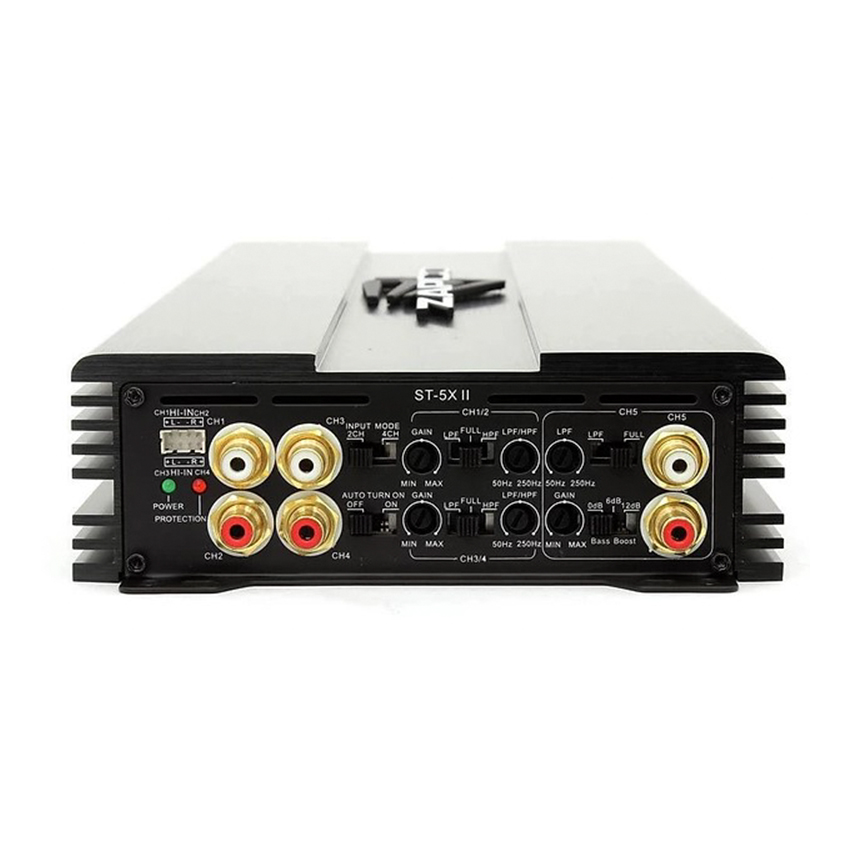

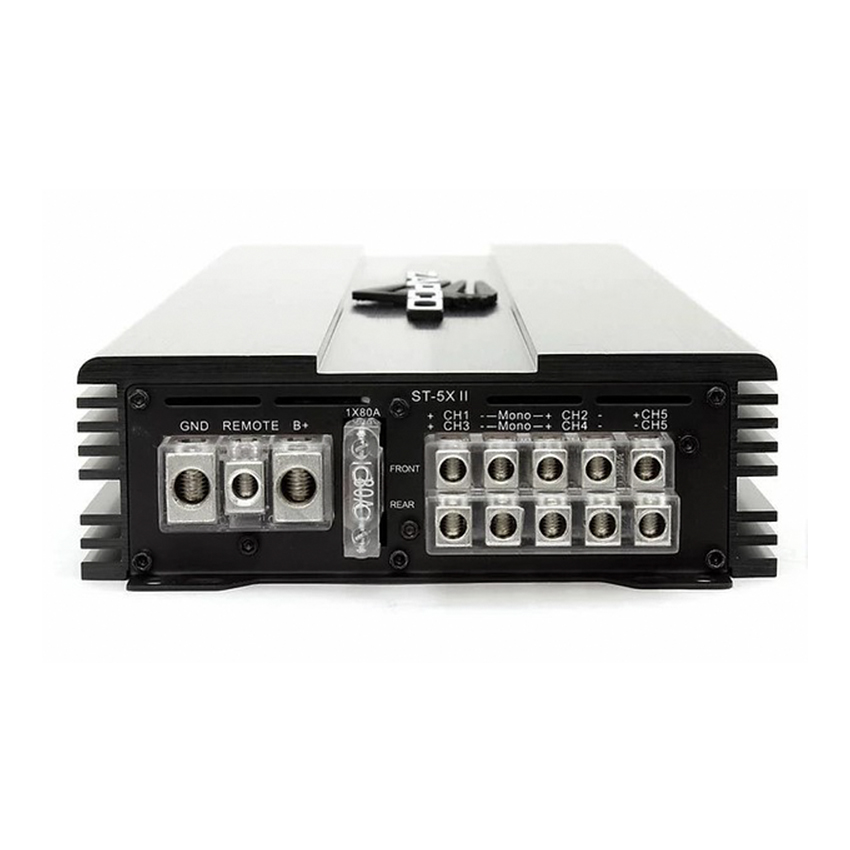

Zapco ST-5X II
5 Ch. Class AB Amplifier
The most important feature shared by all the ST-X amps is the legendary Zapco sound quality, developed with over 40 years of experience.
Description
